Horizontal lathes

Facing lathe KRAMATORSK 1A692F3

The lathe is in excellent condition.

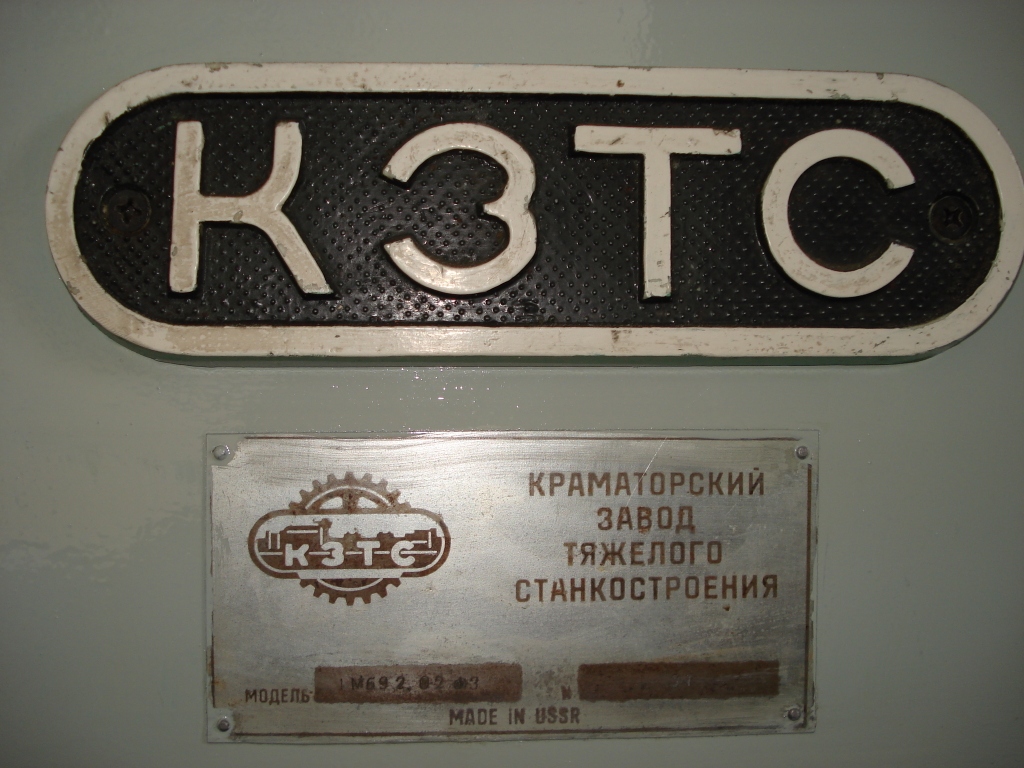

Manufactured by
Kramatorsk (Ukraine)
Face plate diameter, mm
2000
Max. workpiece diameter in front of cross slide, mm
2300
Max. workpiece diameter over cross slide, mm
1100
Workpiece diameter clamped in face plate, mm
280-1810
Ask about this machine
+370 618 15925 Email
  • Inspection at our warehouse in Nemenčinė, Lithuania
  • More photos and details on request
Manufactured by

Kramatorsk (Ukraine)
Face plate diameter, mm

2000
Max. workpiece diameter in front of cross slide, mm

2300
Max. workpiece diameter over cross slide, mm

1100
Workpiece diameter clamped in face plate, mm

280-1810
Center height, mm

1180
Spindle speed, rpm

1-99,9
Max spindle torque, kgm

2500
Longitudinal and cross feed rates, mm/rev

Independent of main drive 0.06–19.98, Synchronized with main drive 1–25
Rapid support movement, m/min

2,3
Main motor power, kW

37
Machine dimensions, mm

5,160 × 5,765 × 2,630
Inquiry

Interested in this machine?

Ask for the price, more photos, a video or an inspection visit. We will reply as soon as possible.
