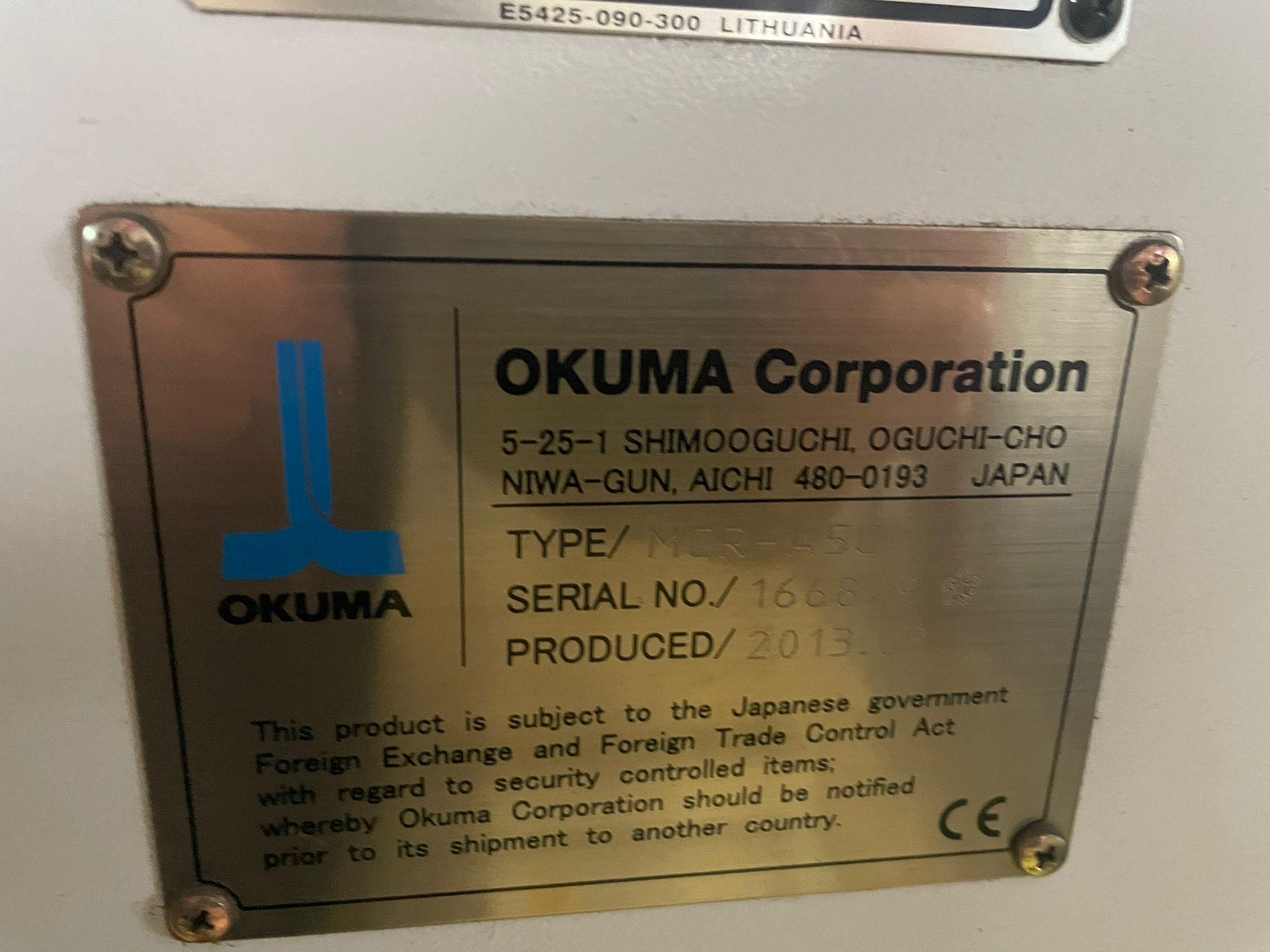

| Manufactured by | Okuma (Japan) |
|---|---|
| Year of manufacture | 2013 |
| CNC control: | Okuma CNC control |
| Table size, mm | 2500 x 6300 |
| Maximum workpiece size (W × L), mm | 2500 x 6600 |
| Effective width between columns, mm | 3050 |
| Maximum table load, kg | 30000 |
| X-axis (table travel), mm | 6500 |
| Y-axis (spindle head travel), mm | 3500 |
| Z-axis (ram travel), mm | 650 |
| W-axis (crossrail vertical travel), MM | 1300 mm (1215 mm automatic positioning) |
| Spindle diameter, mm | 100 |
| Spindle speed range, rpm | 30-4000 |
| Tool holder: | BT50 + MAS2 type |
| Cutting feedrate (X / Y / Z), mm/min | 1-10000 |
| Rapid feedrate, mm/min: | X-axis: 20000 |

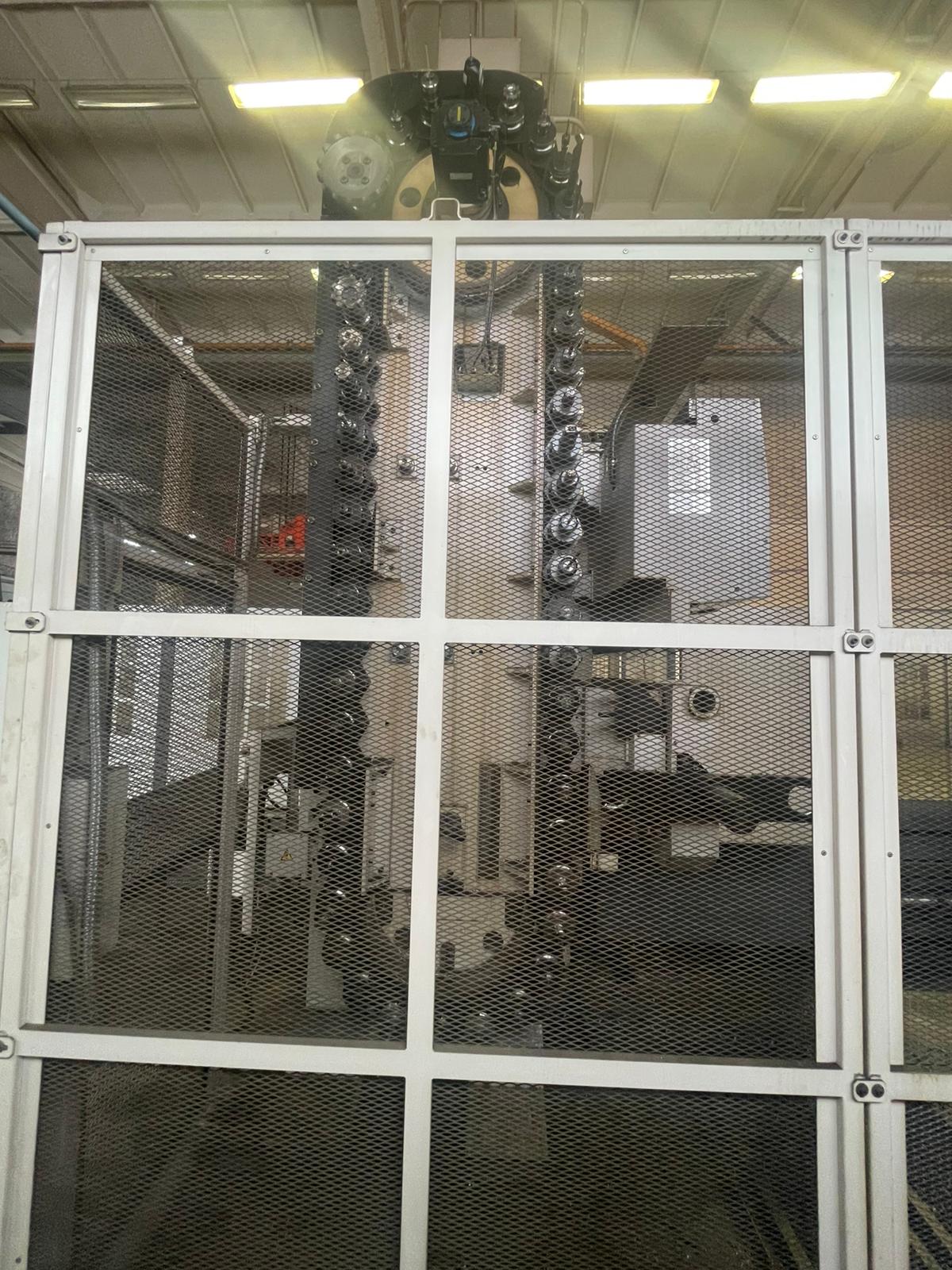

| Tool magazine capacity: | 50 |
| Machine weight, kg | 59000 |

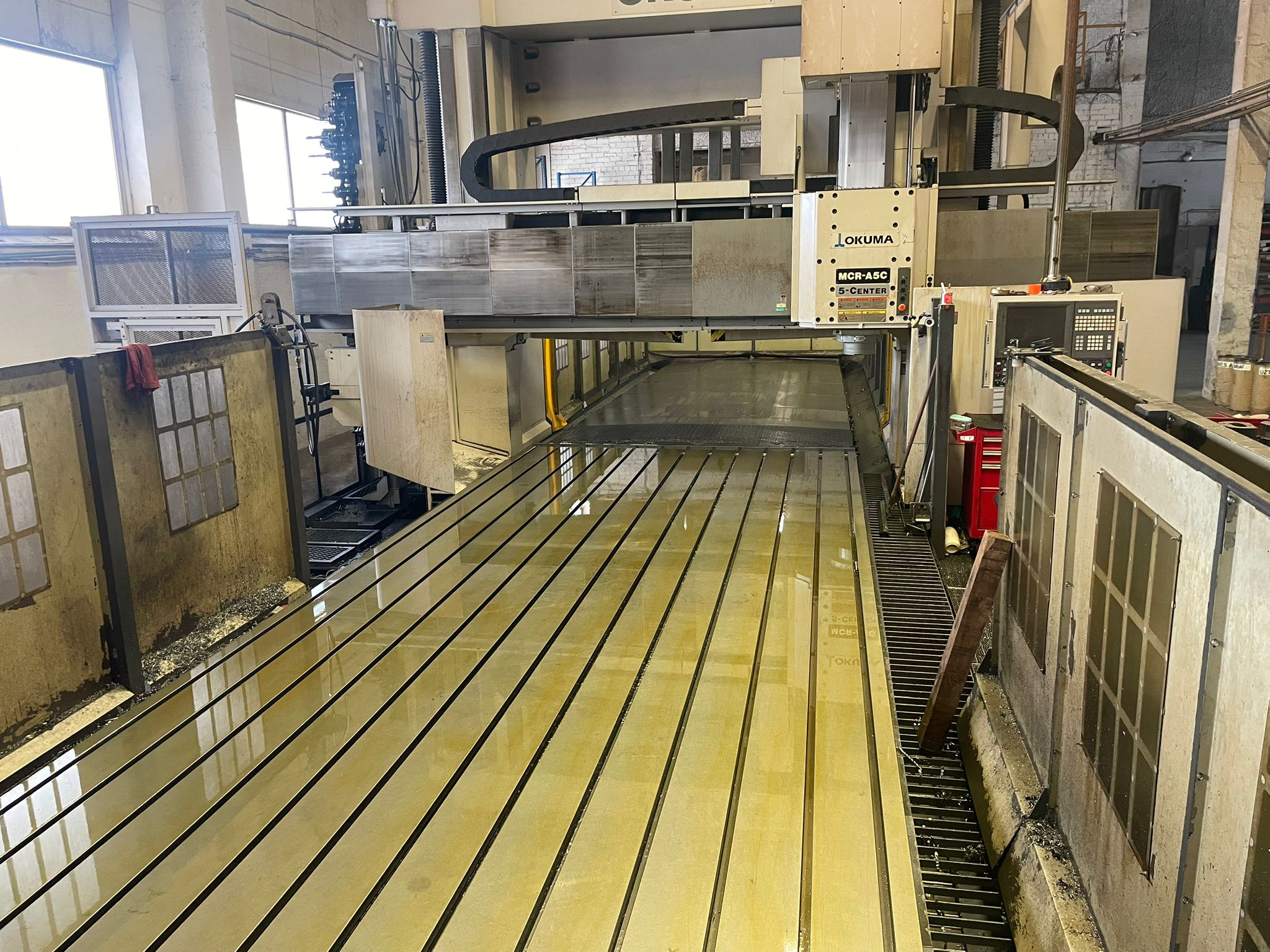

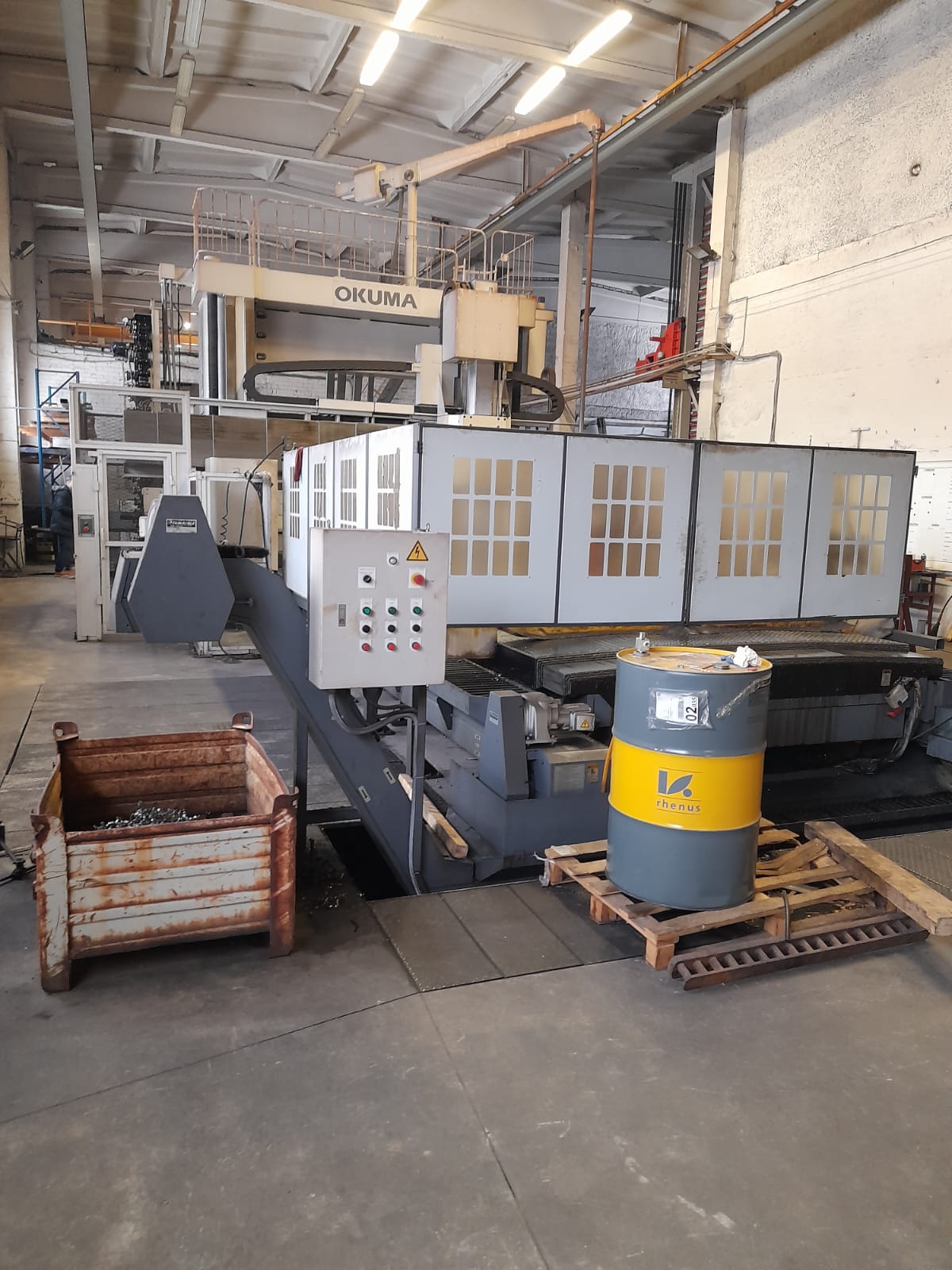

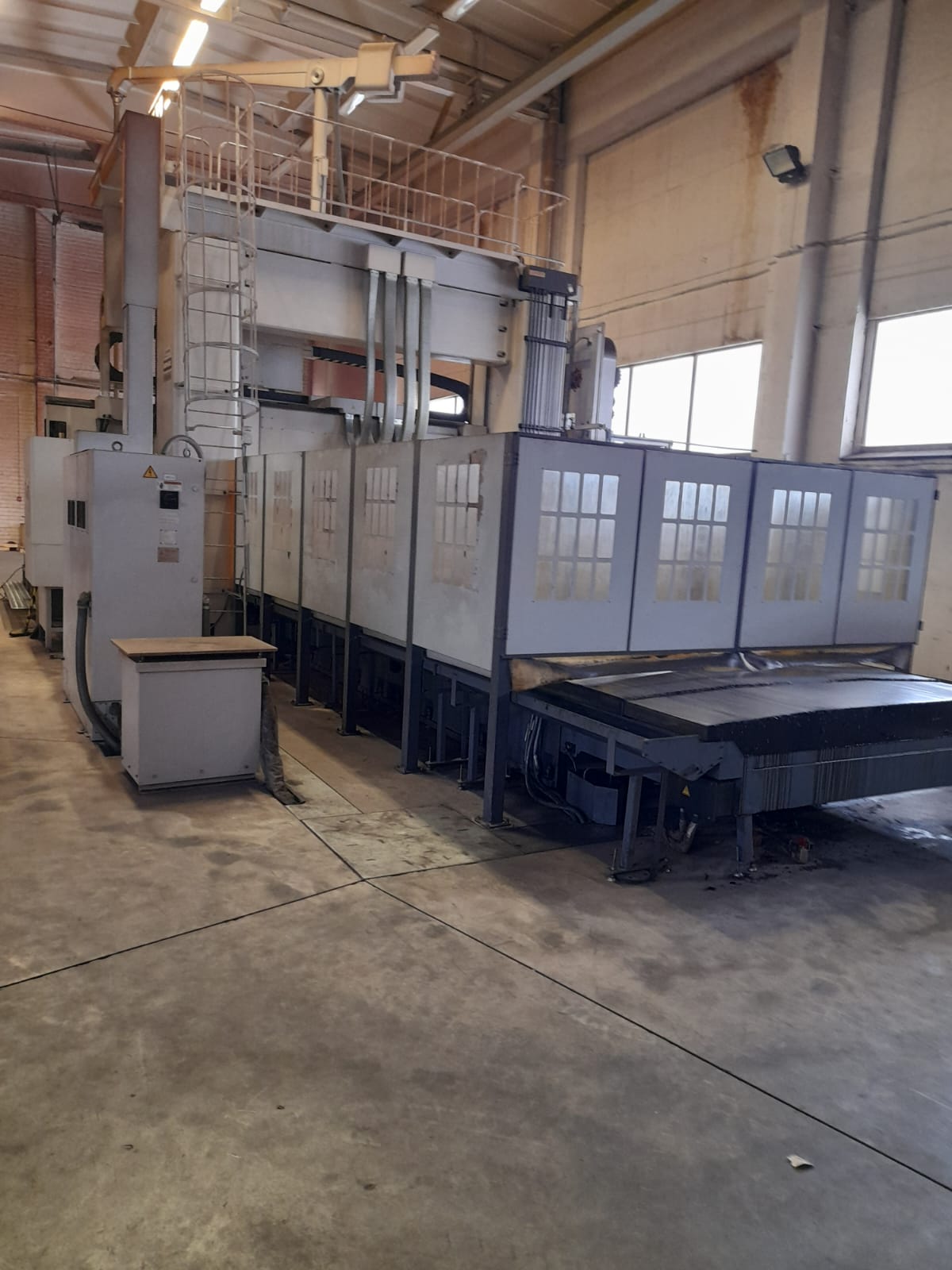

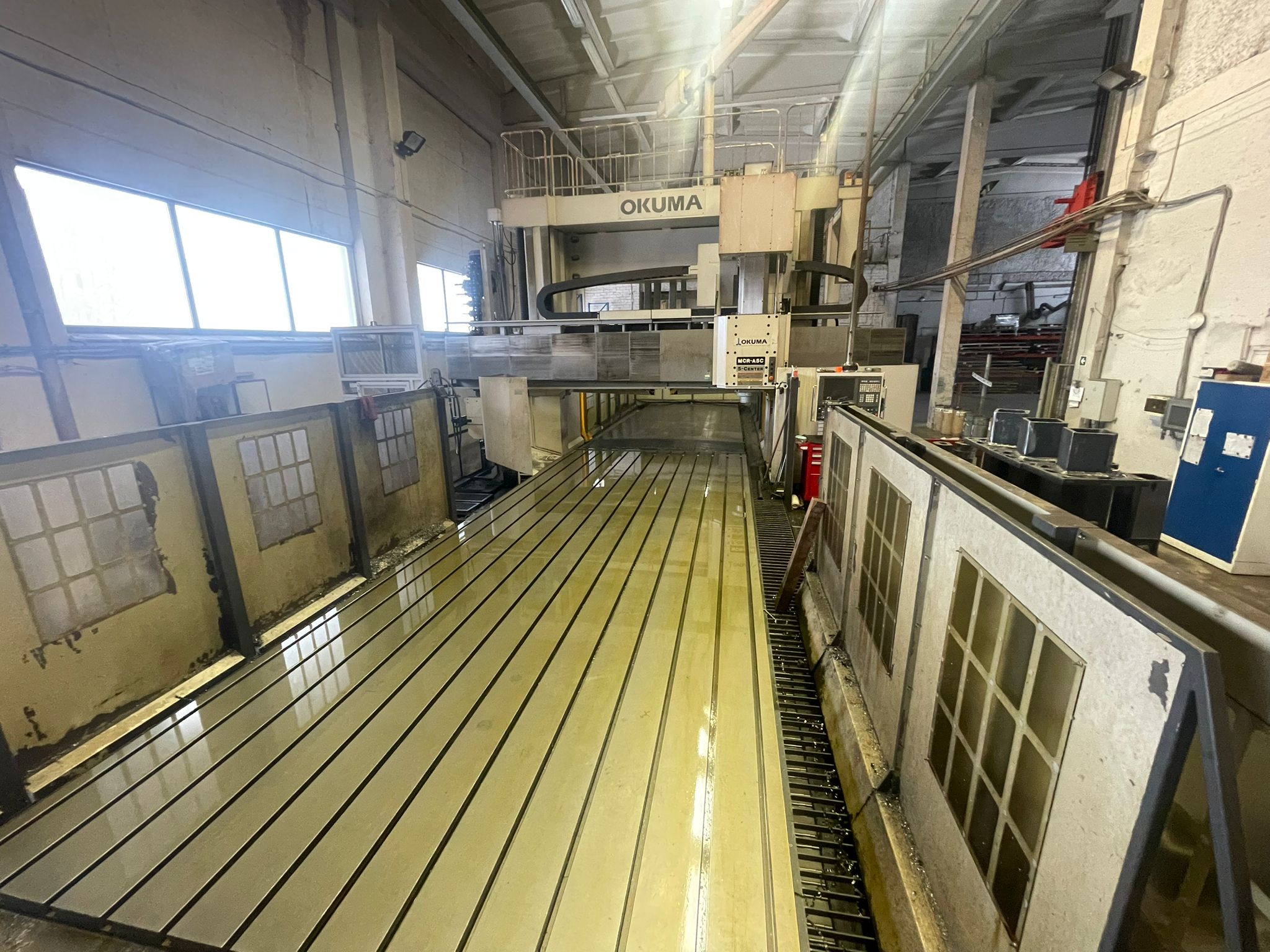

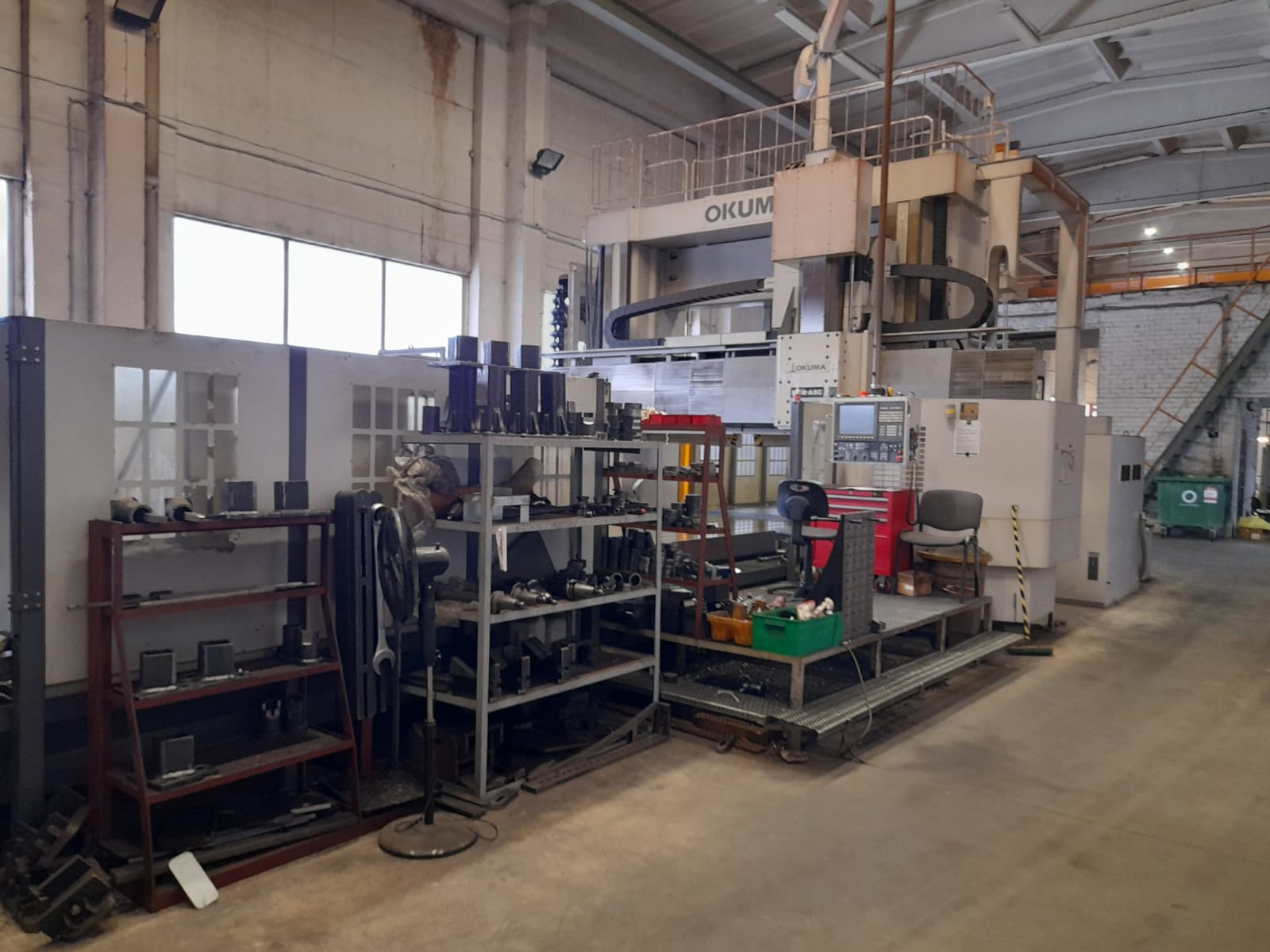

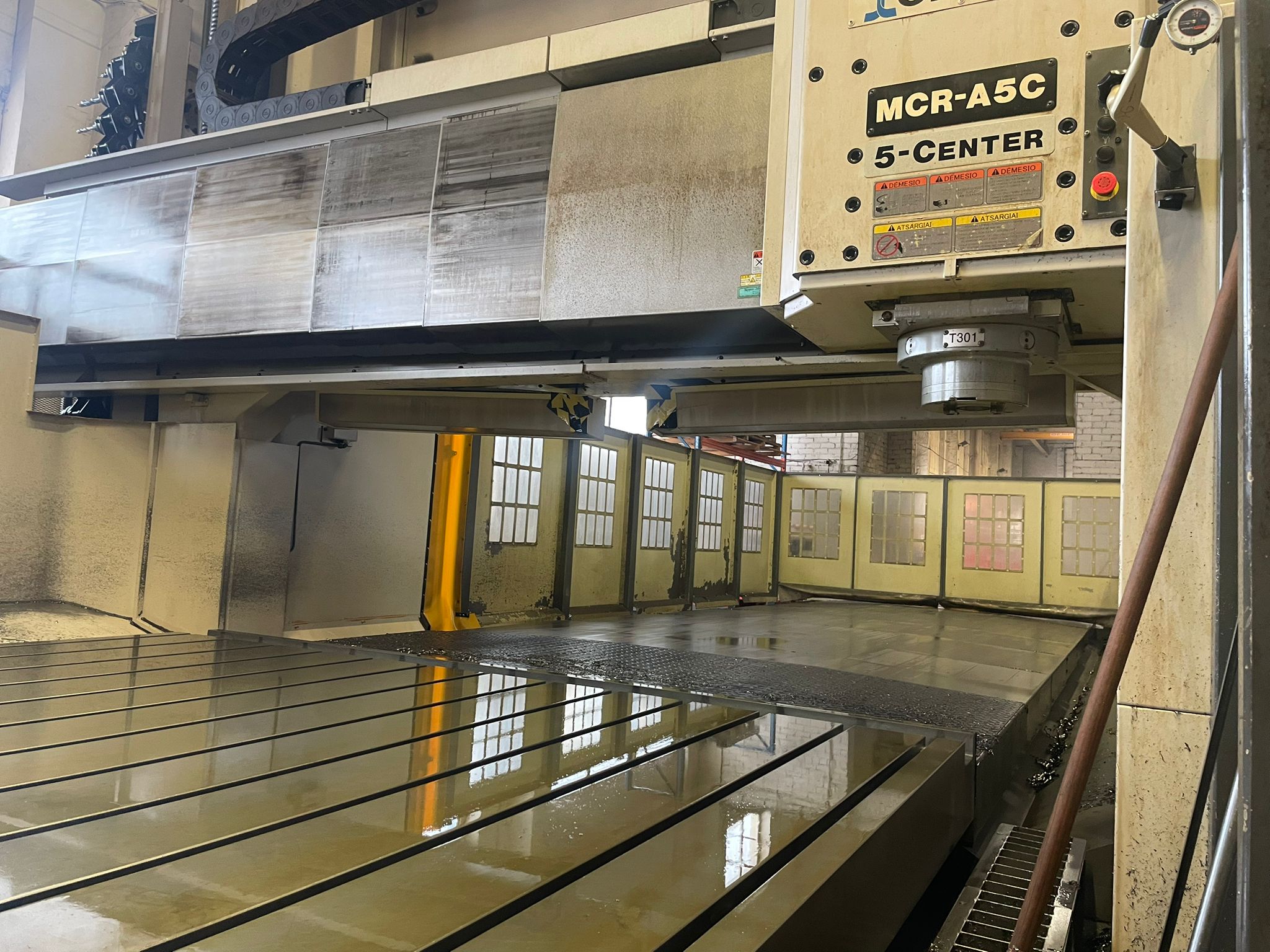

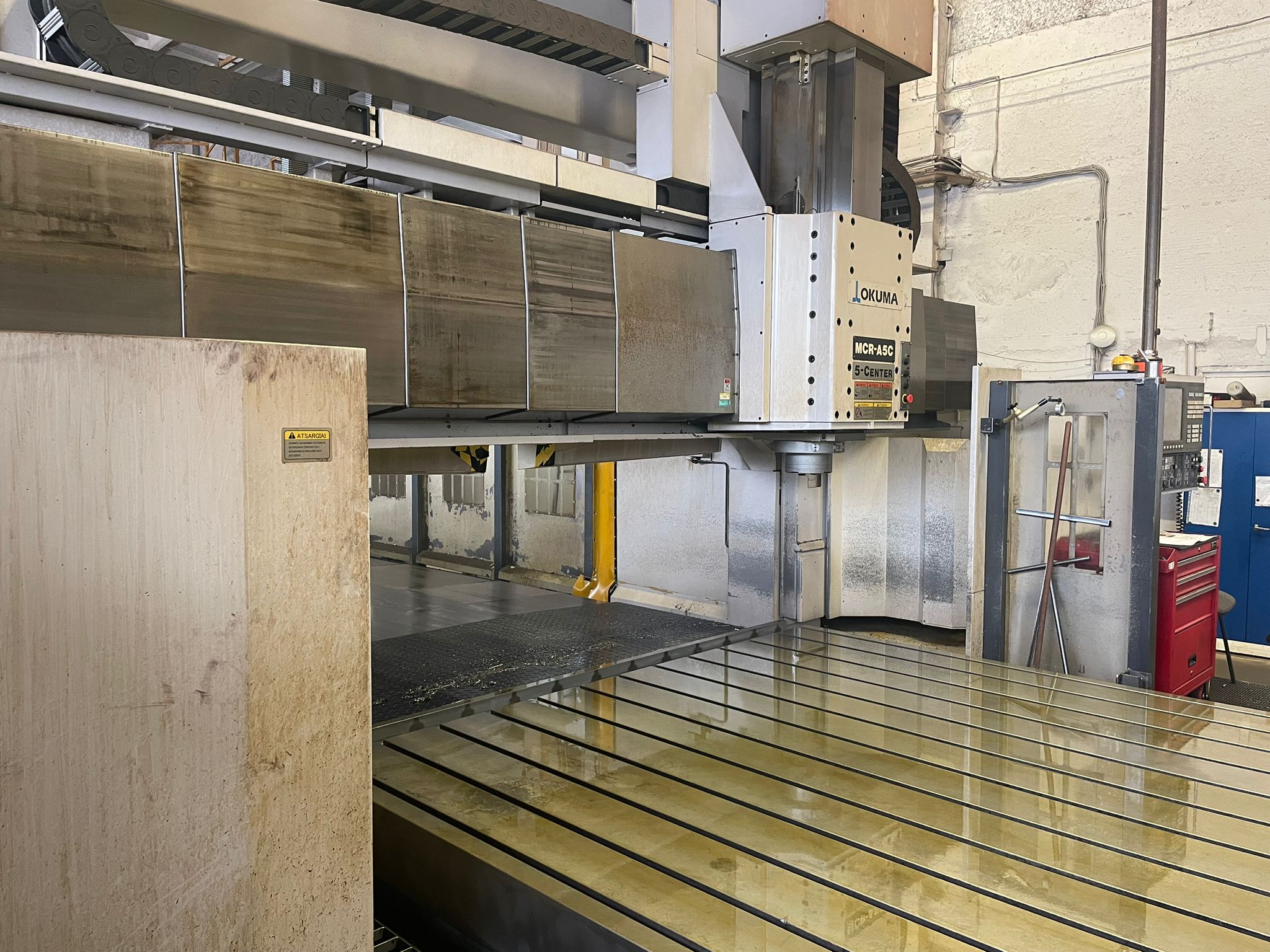

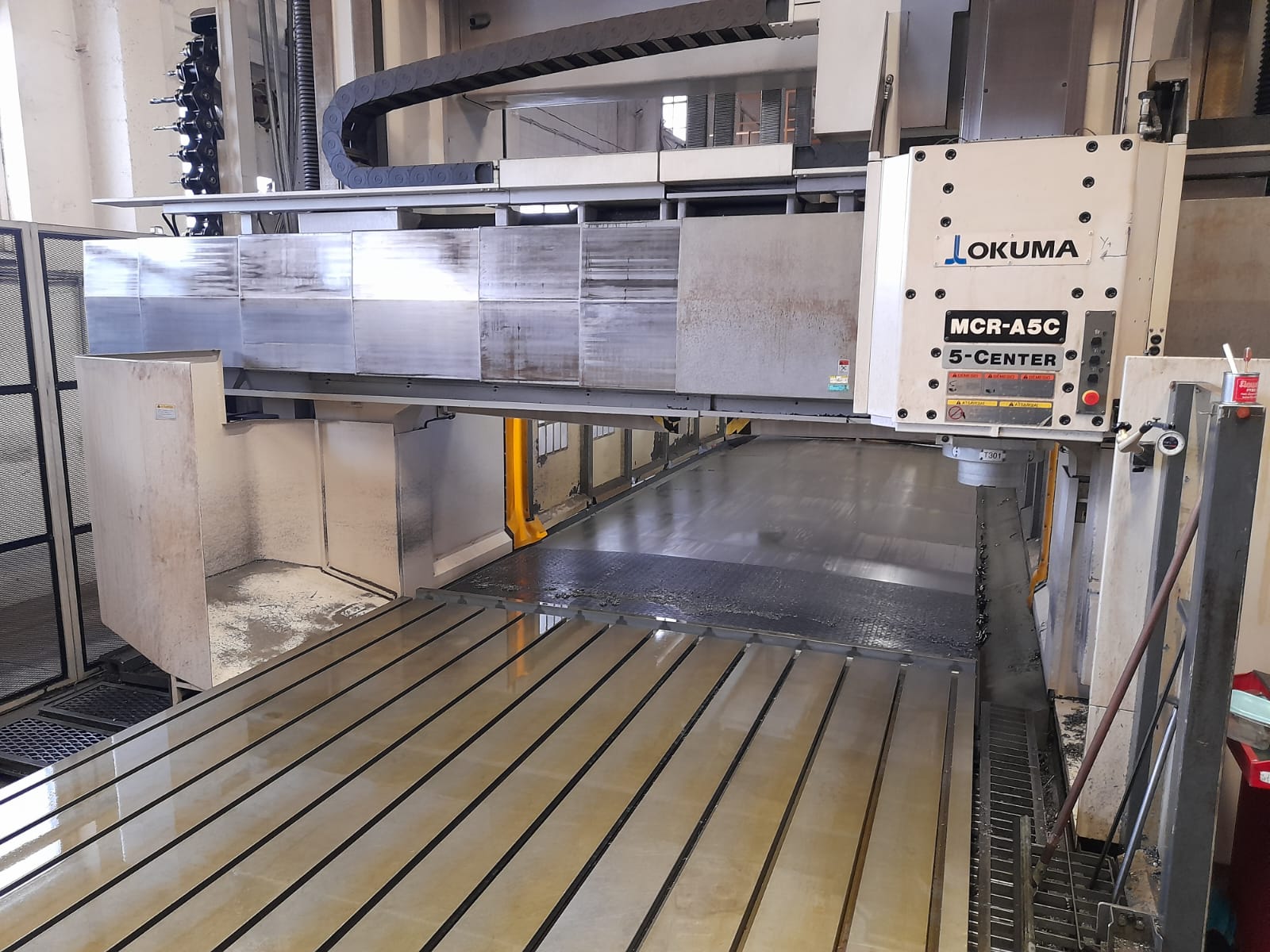

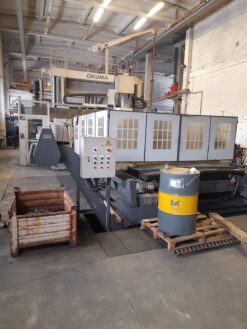

Gantry milling machine OKUMA MCR-A5C
Okuma MCR-A5C gantry machining center (2013) with BT50 spindle, 6,500 mm X-travel and 30 t table load. Machine has approx. 5,700 cutting hours and 6,900 spindle hours, suitable for heavy and precise machining of large workpieces.
