| Manufactured by | Kramatorsk (Ukraine) |
|---|---|
| Work piece diameter, mm | 1800 |
| Max work piece height above carriage, mm | 1250 |
| Work piece length, mm | 8000 |
| Max work piece weight between centers, kg | 40000 |
| Spindle rotation speed, rpm | 1-250 |
| Maximum spindle torque, kNm | 75 |
| Rapid traverse speed, m/min | 4 |
| Positioning accuracy: | Z-axis (8000 mm): 175 µm, X-axis (820 mm): 40 µm |
| Accuracy & Surface Quality: | +Roundness deviation: |
| Metric threading, mm | 1 – 96 |
| Inch threading, thread/inch | 20 – 3/8 |

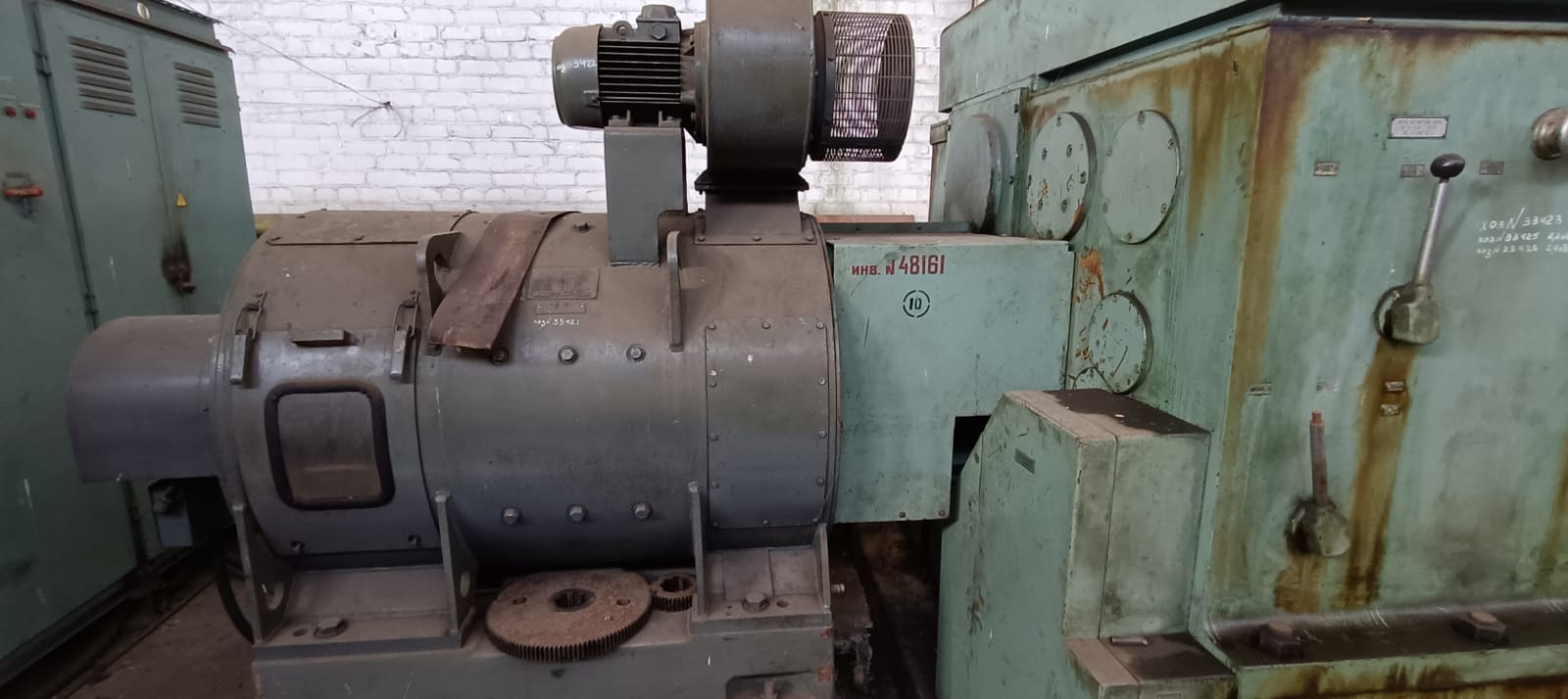

| Motor capacity, kW | 110 |
| Machine dimensions, mm | 15290 x 3061 x 2370 |
| Machine weight, kg | 61700 |
Home » Catalog » Lathe machines »

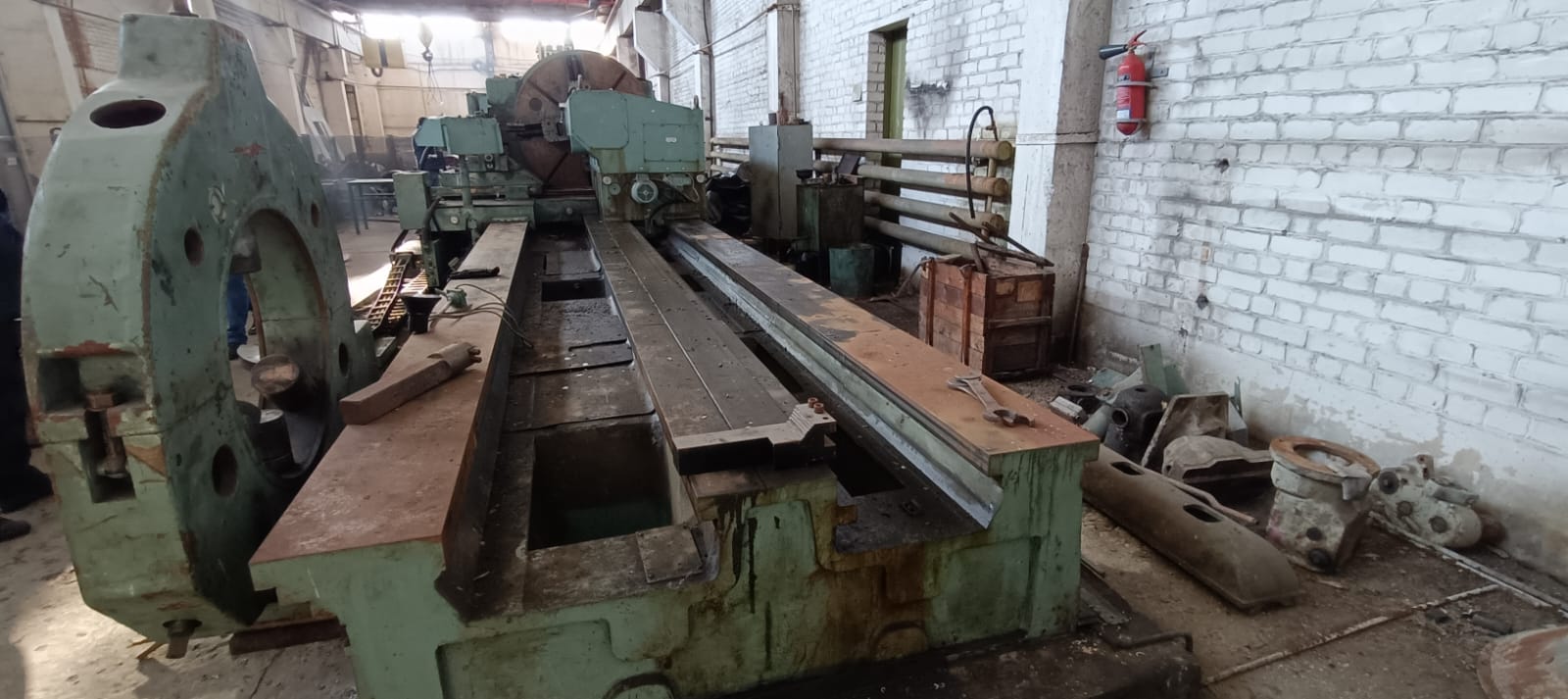

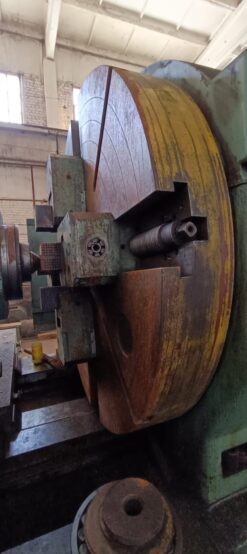

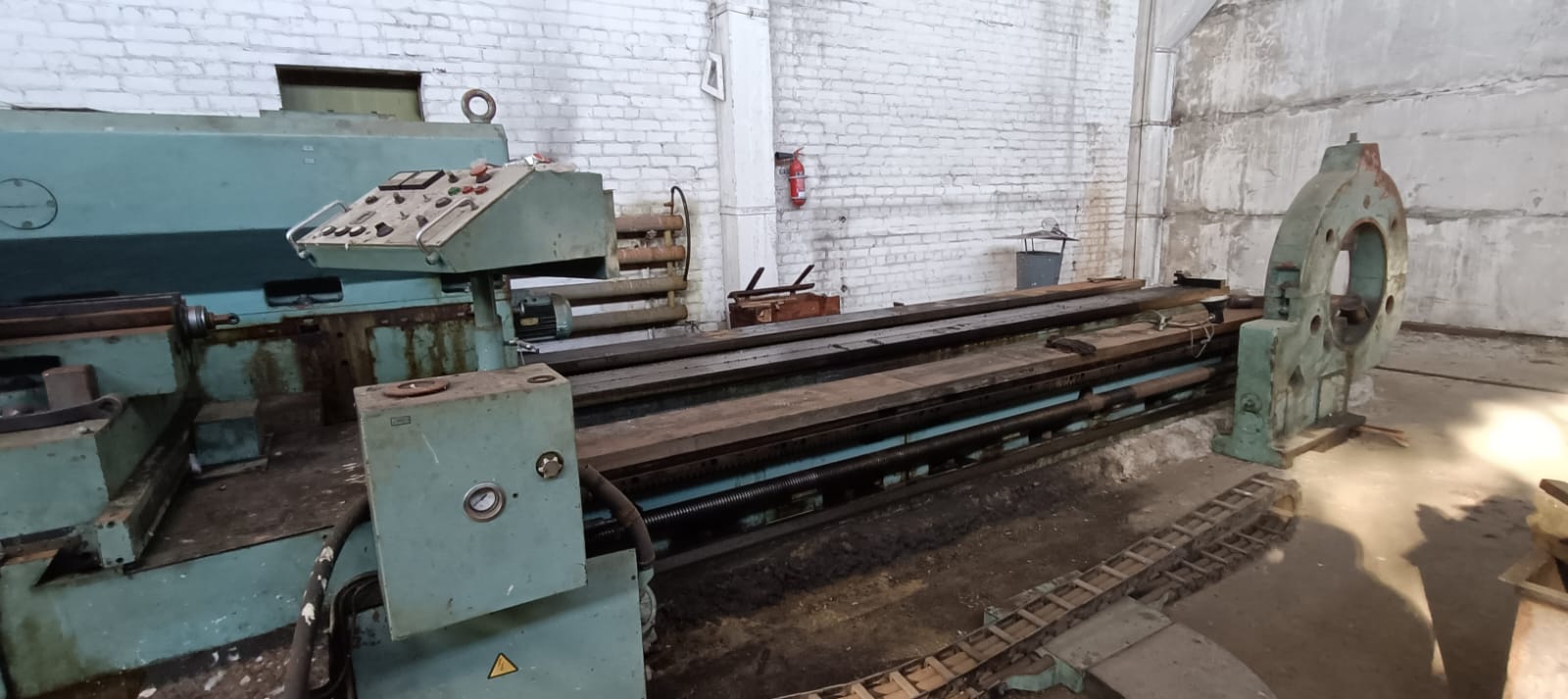

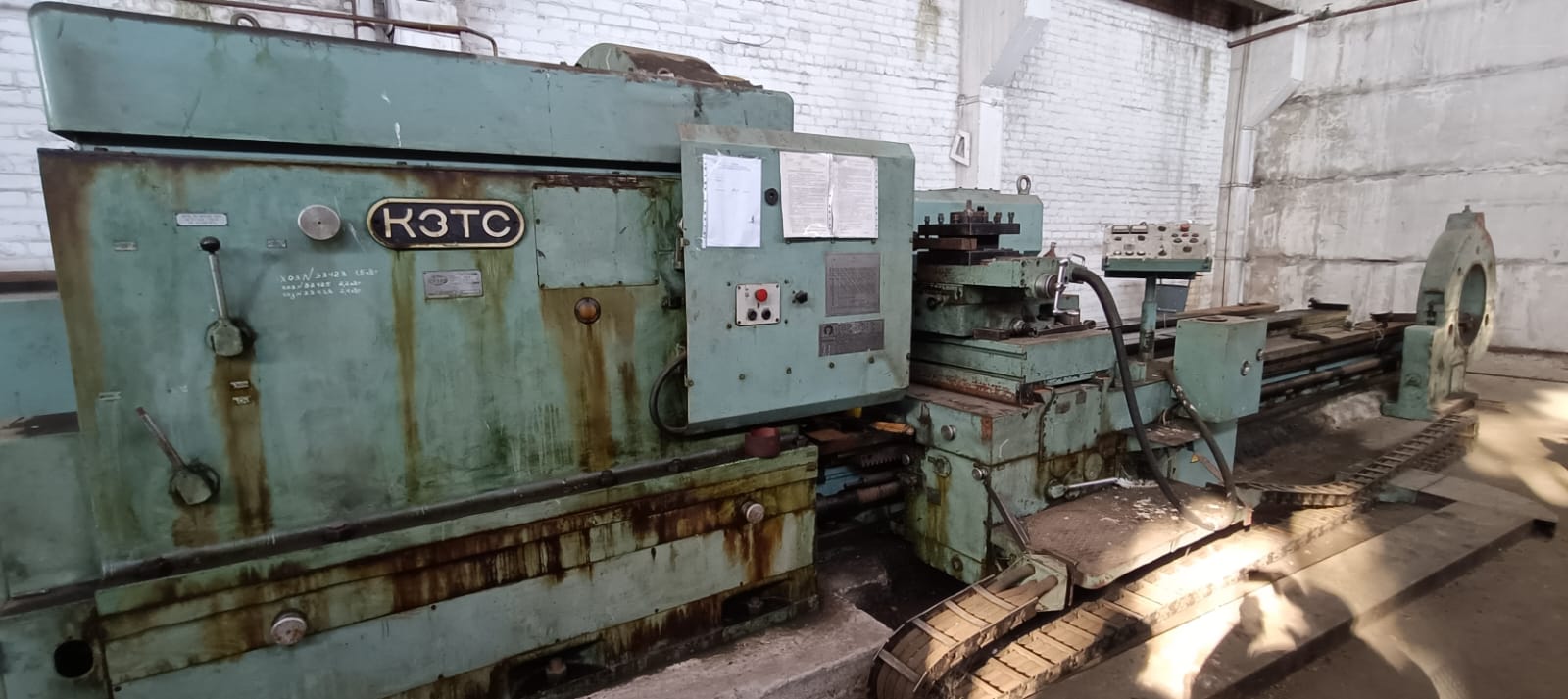

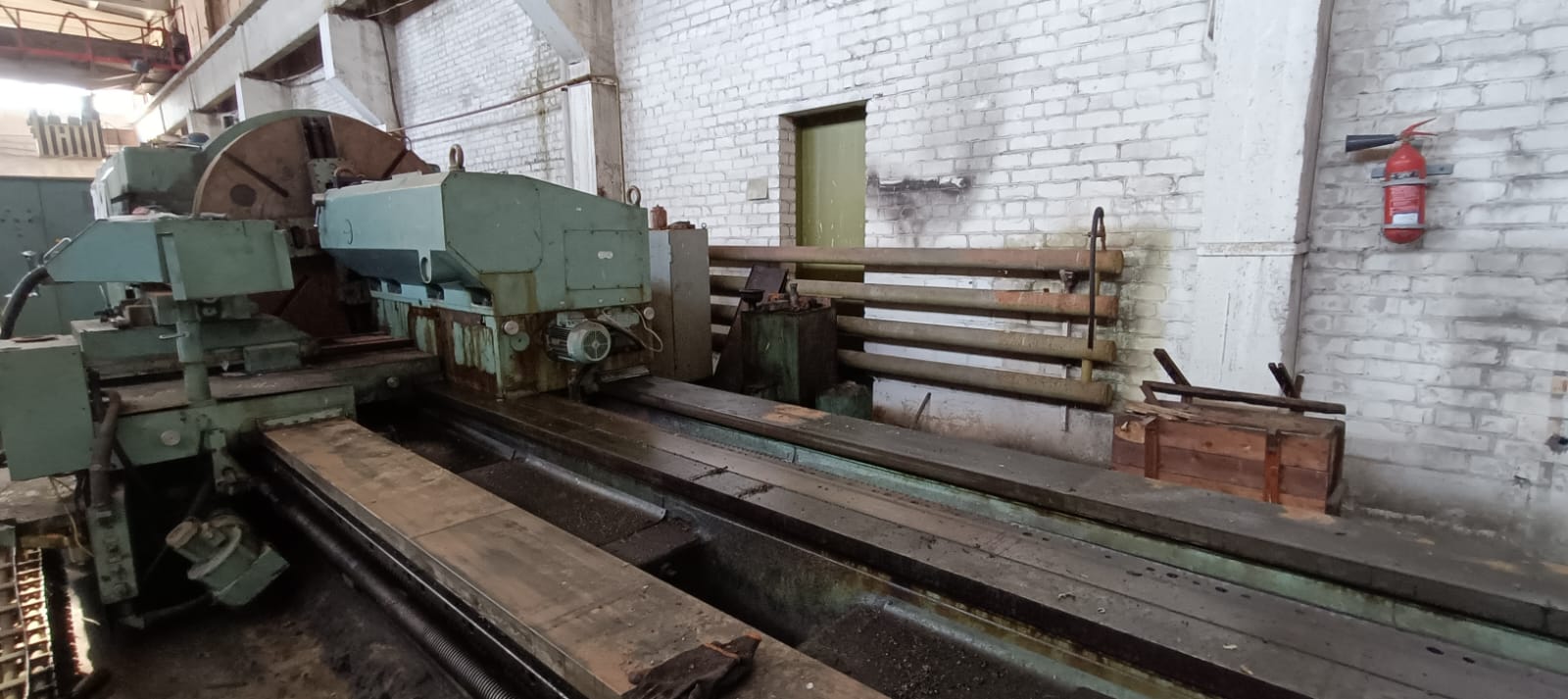

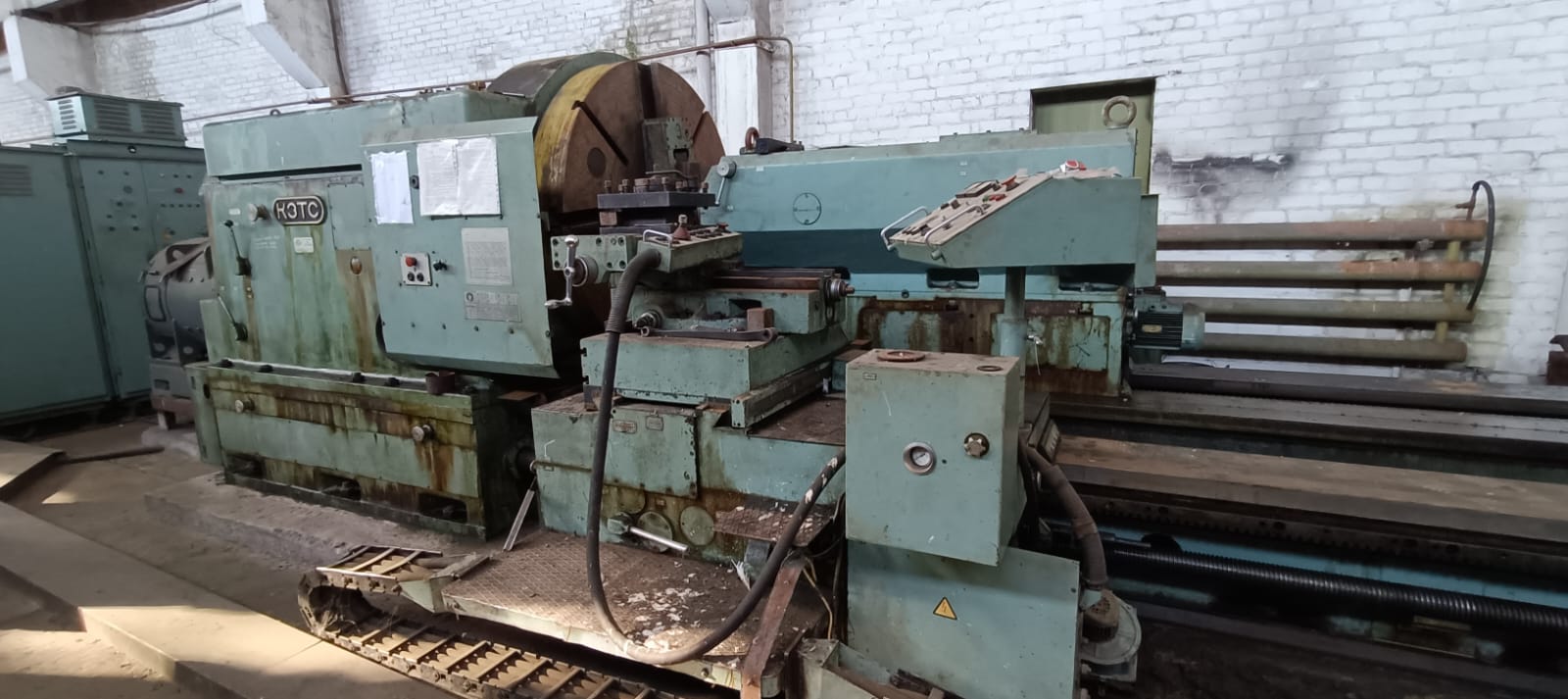

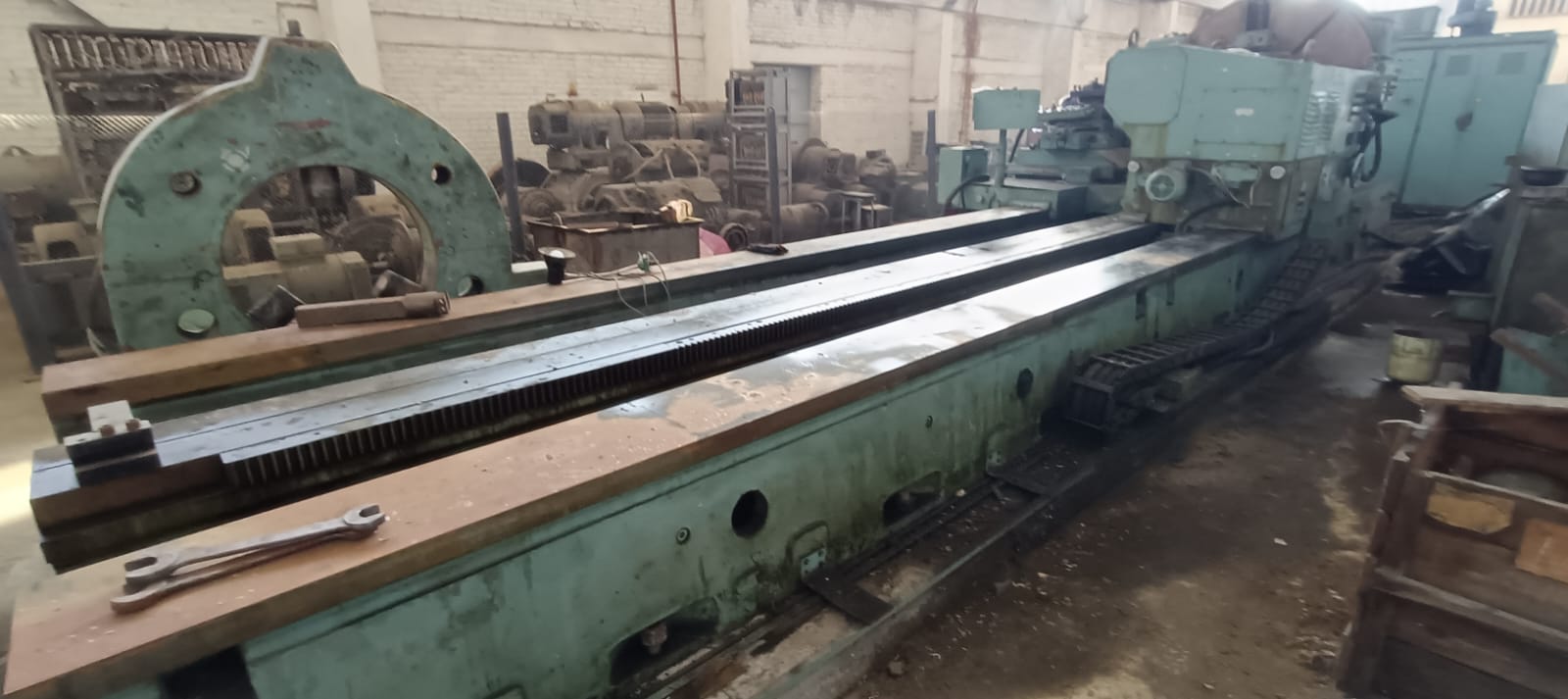

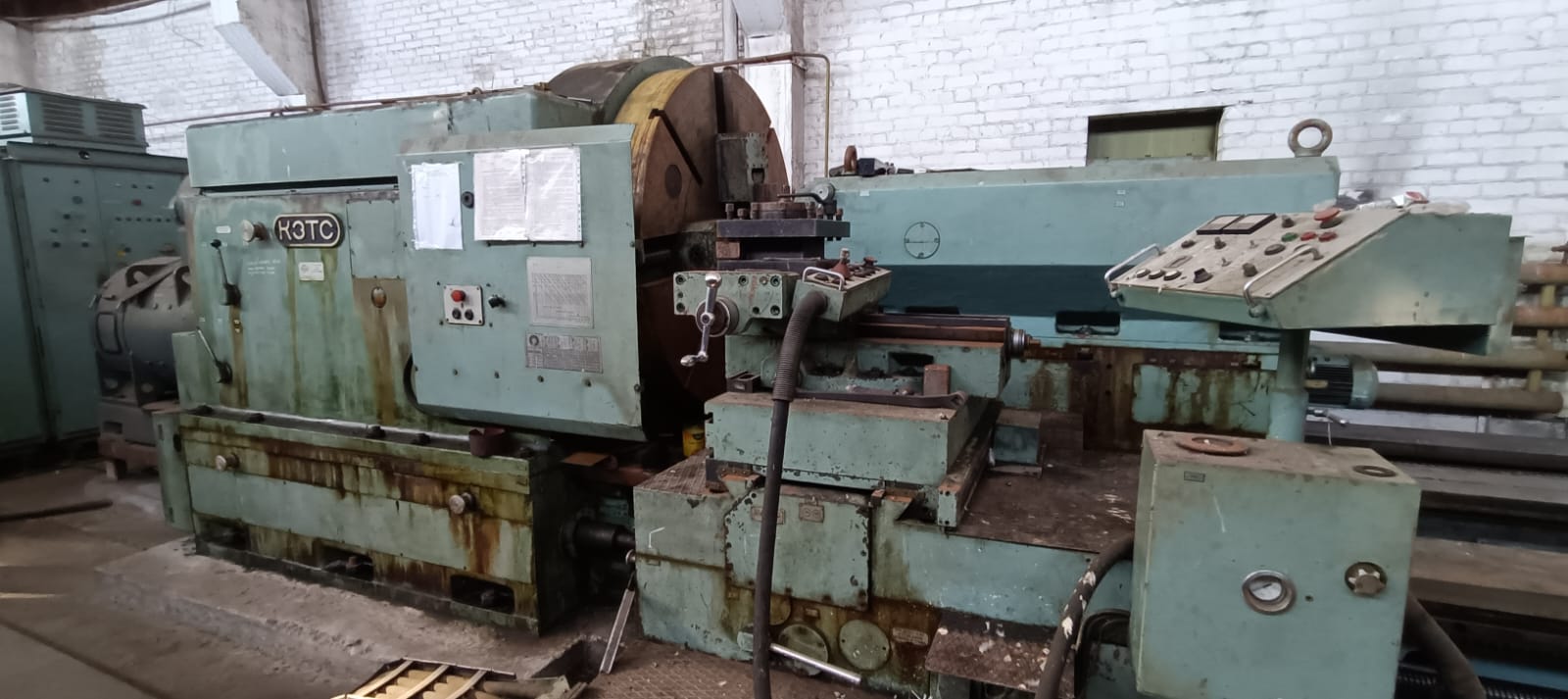

Heavy duty lathe KRAMATORSK KZH16200F2 (1M665)
Heavy-duty turning lathe designed for machining oversized and high-weight workpieces. Built for demanding industrial applications, it allows precise turning of long shafts and large-diameter components with high torque, stable cutting conditions, and reliable positioning accuracy. The machine is suitable for heavy roughing and finishing operations in energy, heavy engineering, and general machinery industries.
The lathe is complete and in nice condition.
