| Manufactured by | Barnaul |
|---|---|
| Capacity, ton | 1000 |
| Strokes per minute | 32 |
| Table size, mm | 800 x 800 |
| Slider stroke, mm | 170 |
| Max distance between table and slider, mm | 470 |
| Bolster plate thickness, mm | 140 |
| Lower knockout | -Stroke, mm 11; -force, ton 320 |
| Upper knockout | -Stroke, mm 10; -force, ton 10 |
| Motor capacity, kW | 40 |
| Press dimensions, mm | 3060 x 1730 x 3830 |
| Press weight, kg | 26000 |

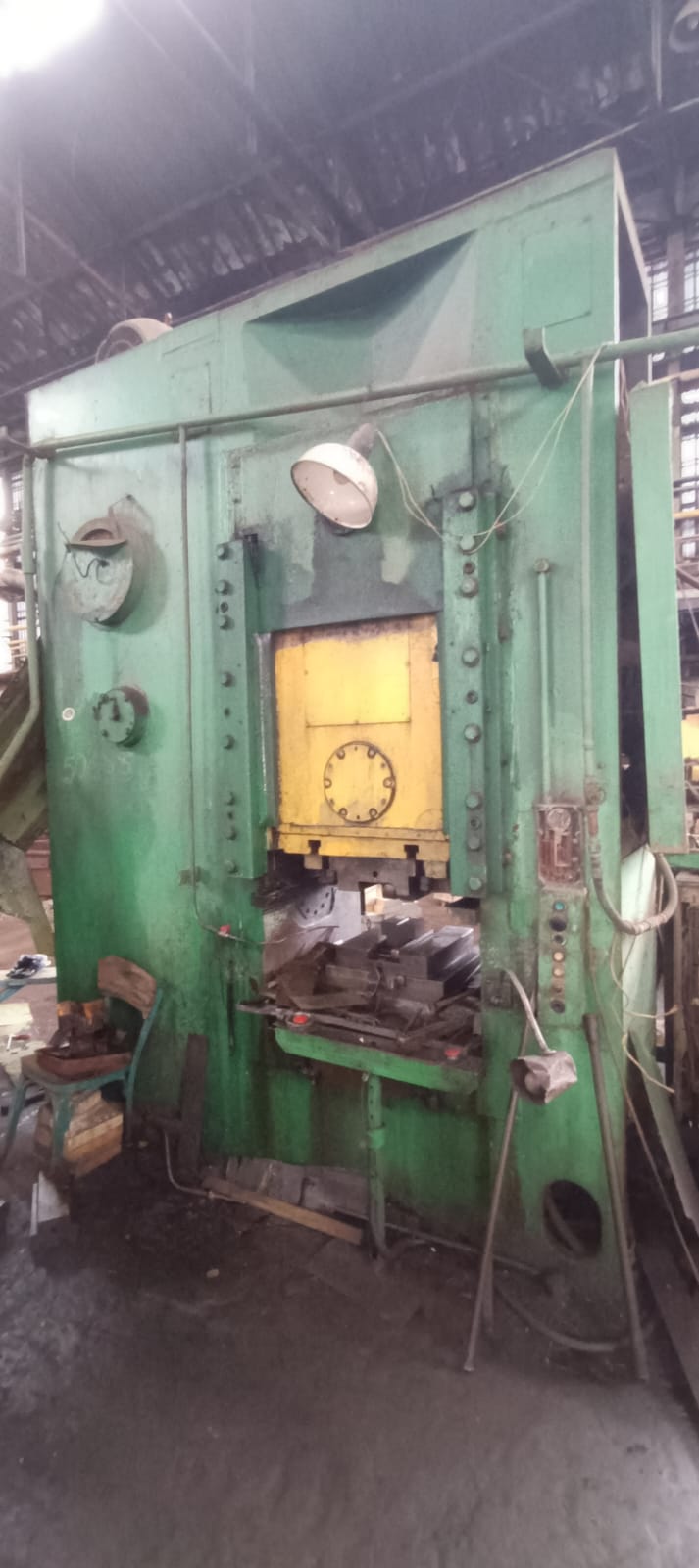

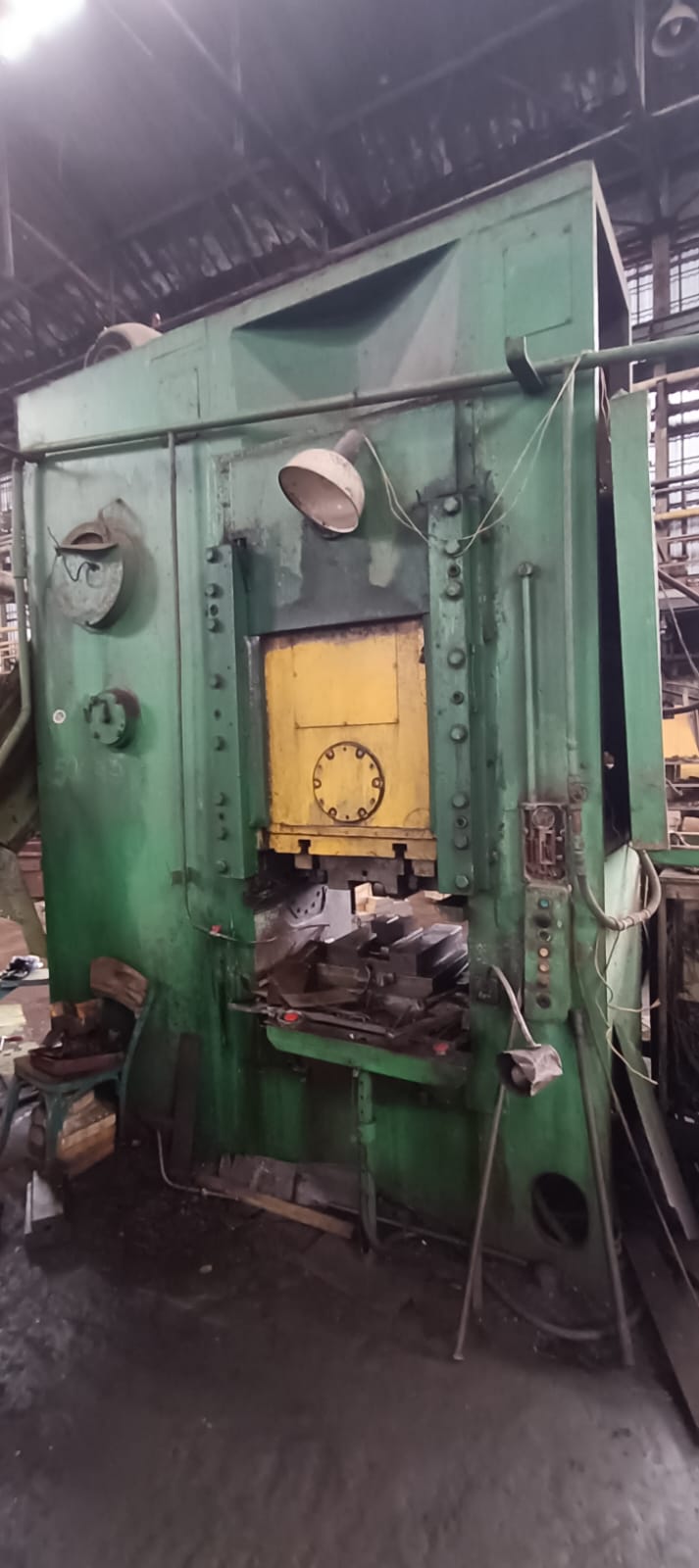

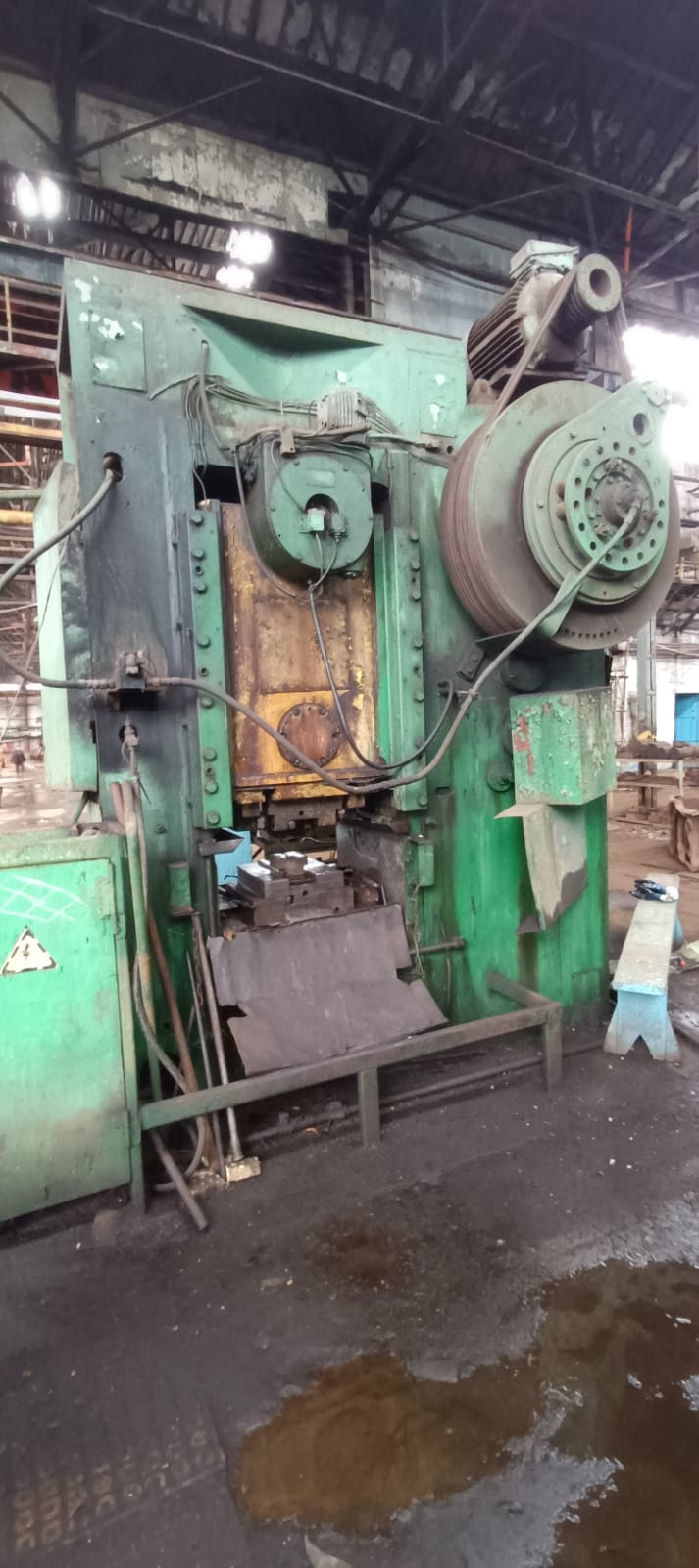

Knuckle joint press BARNAUL KB8340
The press is designed for carrying out various cold pressing operations that require high specific pressures with short strokes: embossing, sizing, finishing, die forging and the like. In addition it can be used for carrying out cold extrusion of steel parts.
Press is in good condition.
