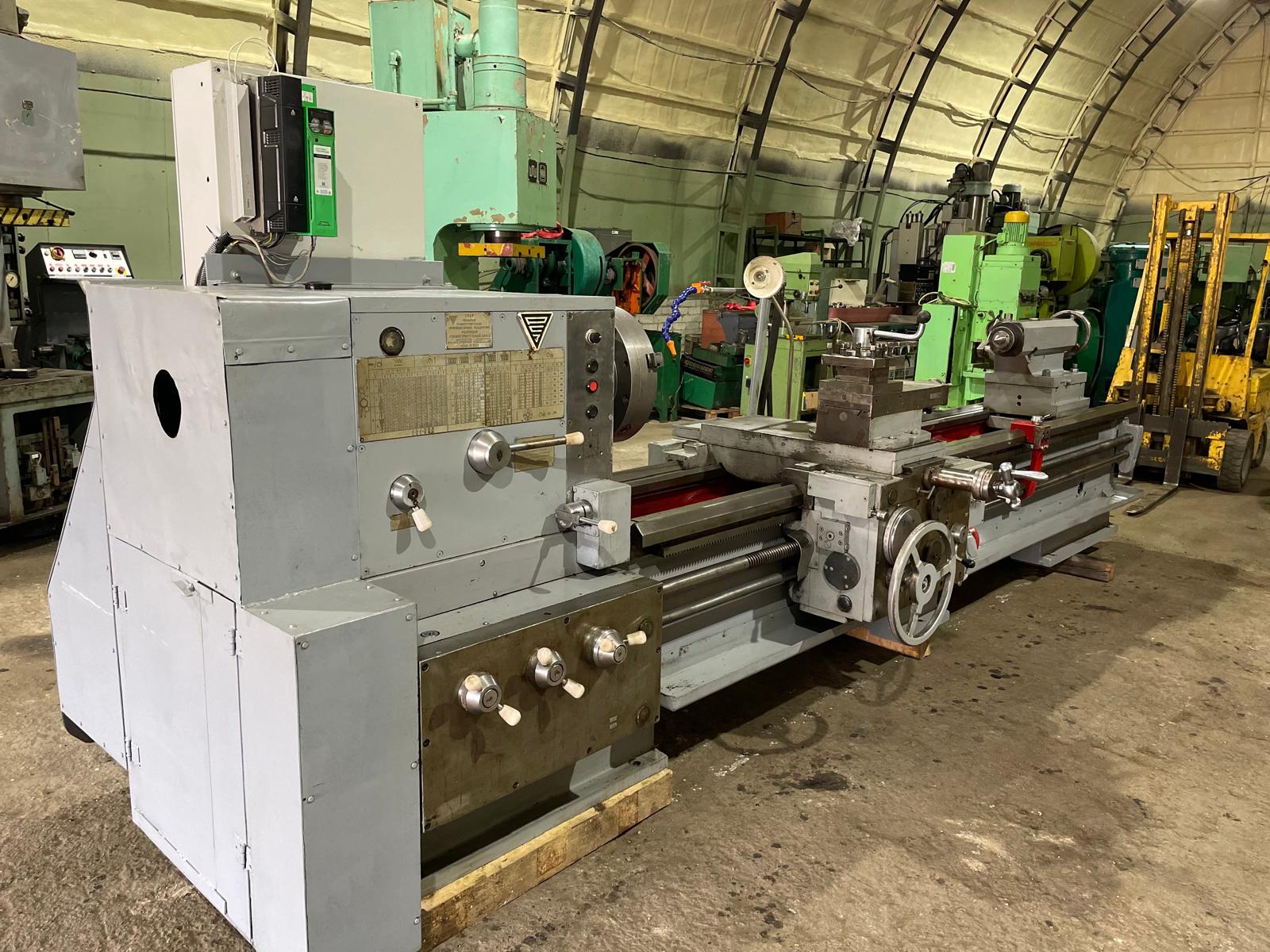

Manufactured by | Ryazan (Russia) |
---|---|
Year of manufacture | 1988 |
Work piece diameter, mm | 800 |
Work piece length, mm | 3000 |
Max work piece weight, kg | 2000 |
Spindle rotation speed, rpm | 6.3 x 1250 |
Spindle bore diameter, mm | 110 |
Metric threading, mm | 1 – 224 |
Inch threading, thread/inch | 28 – 1/4 |
Module threading, module | 1/4 – 56 |
Pitch threading, pitch/diam. | 112 – 0.5 |

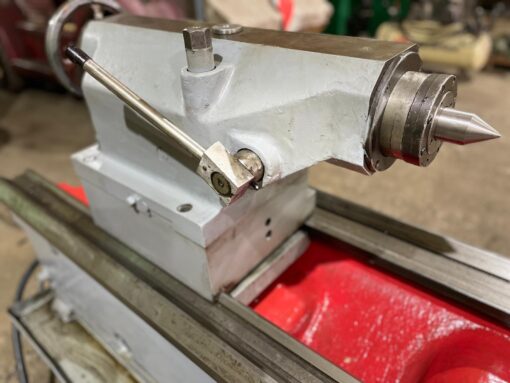

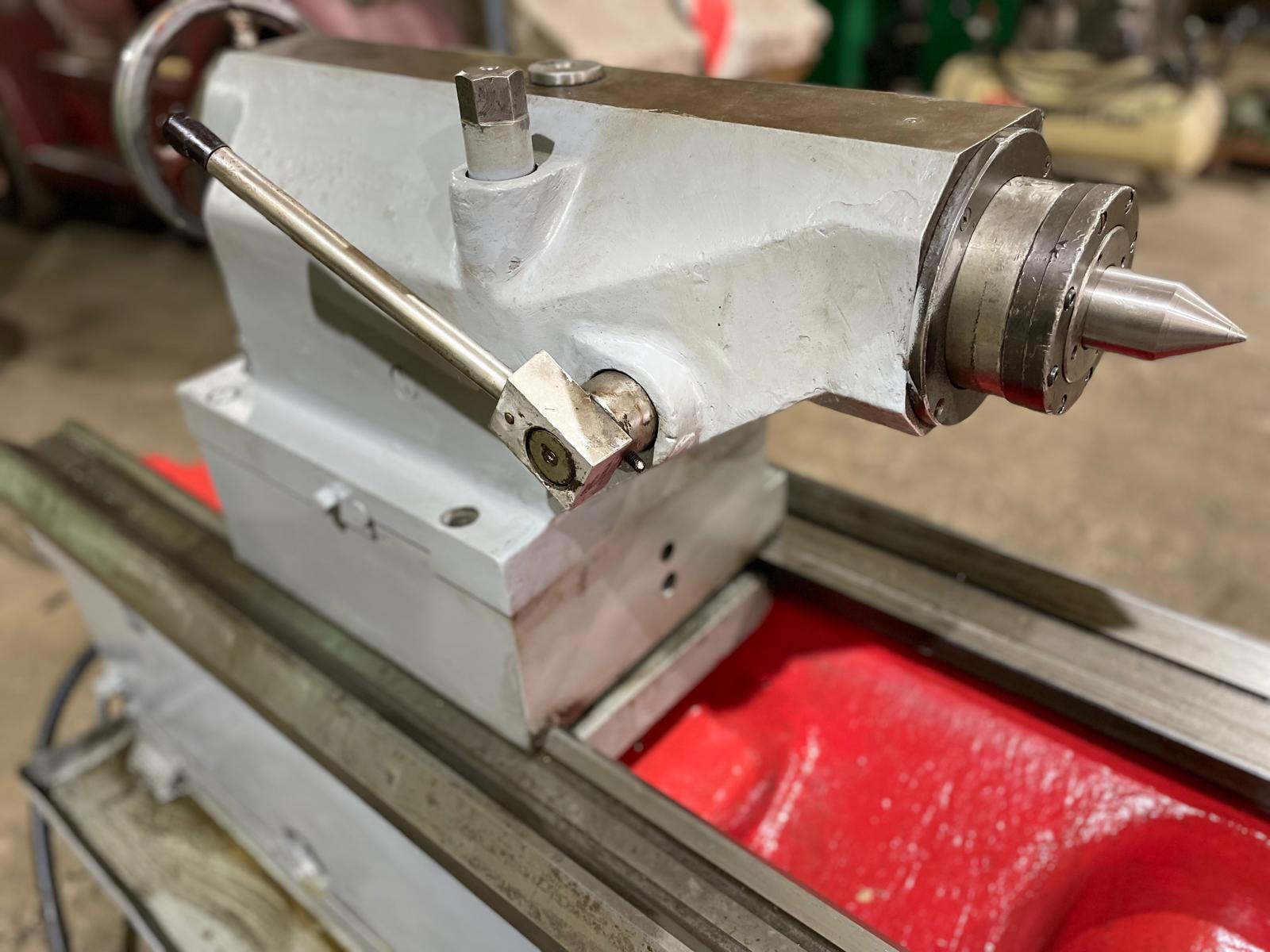

Quill taper | Morse 5 |
Quill movement, mm | 240 |

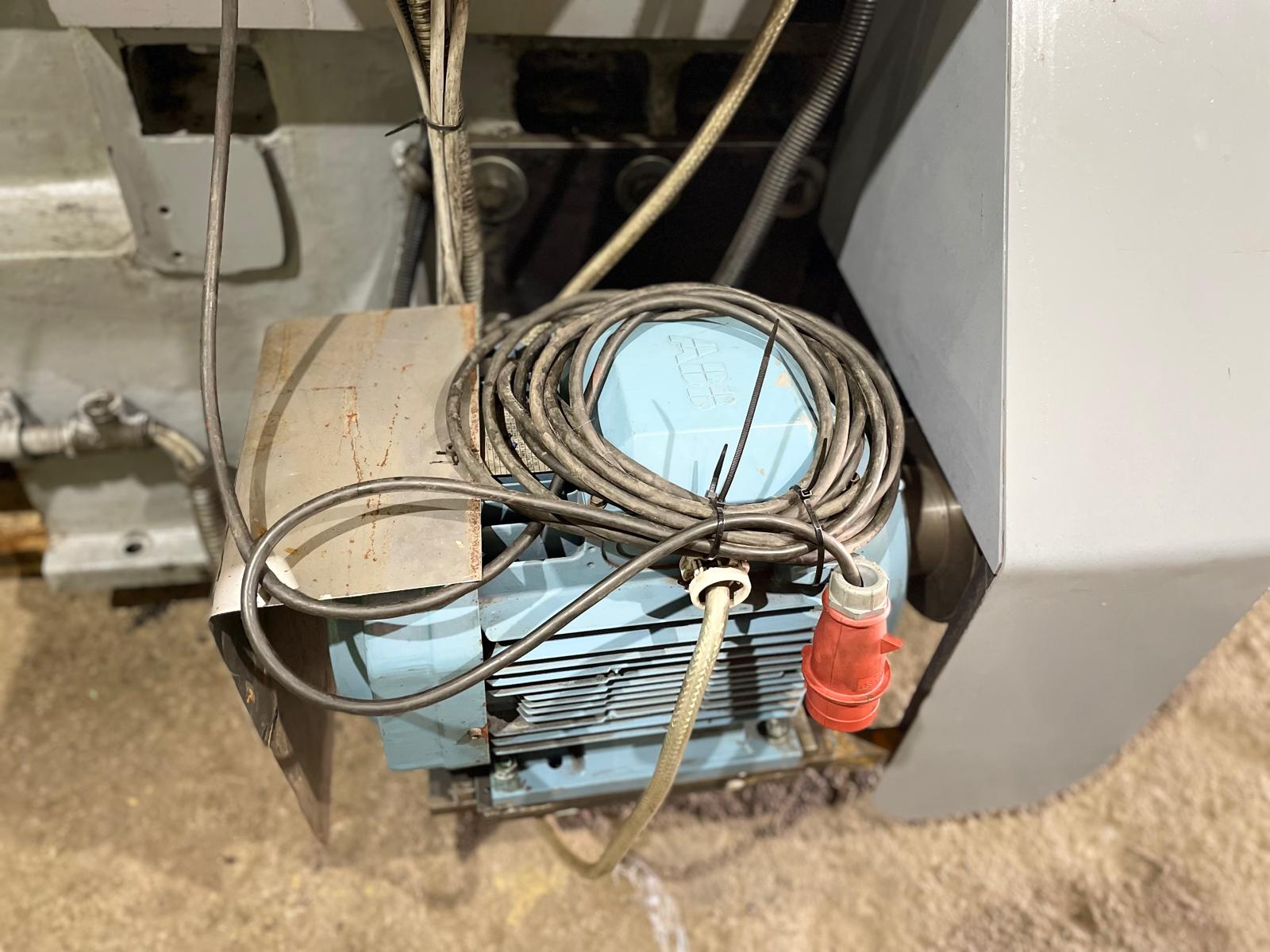

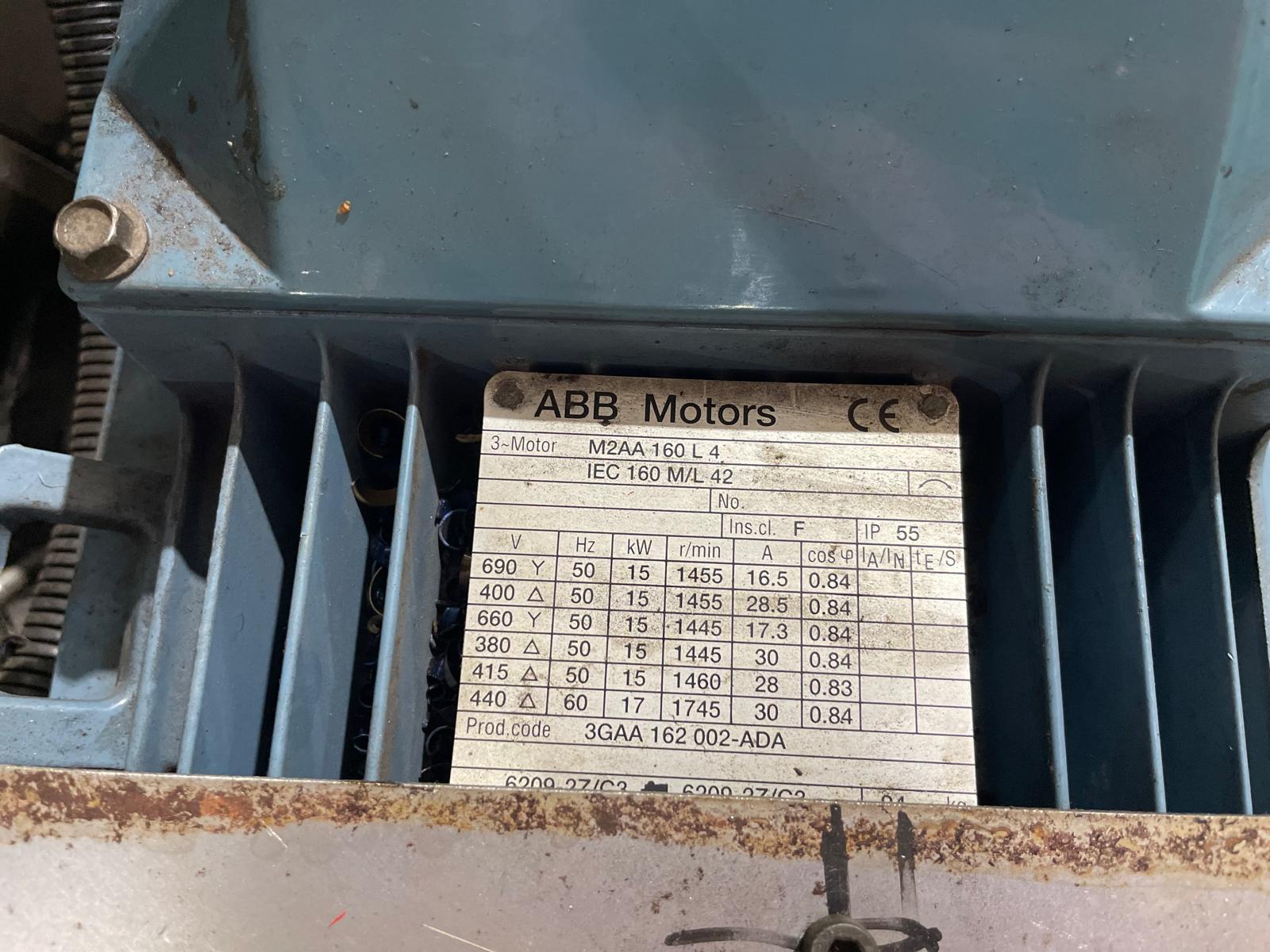

Motor capacity, kW | 15 |
Machine weight, kg | 7120 |
Machine dimensions, mm | 5780 x 1850 x 1620 |
