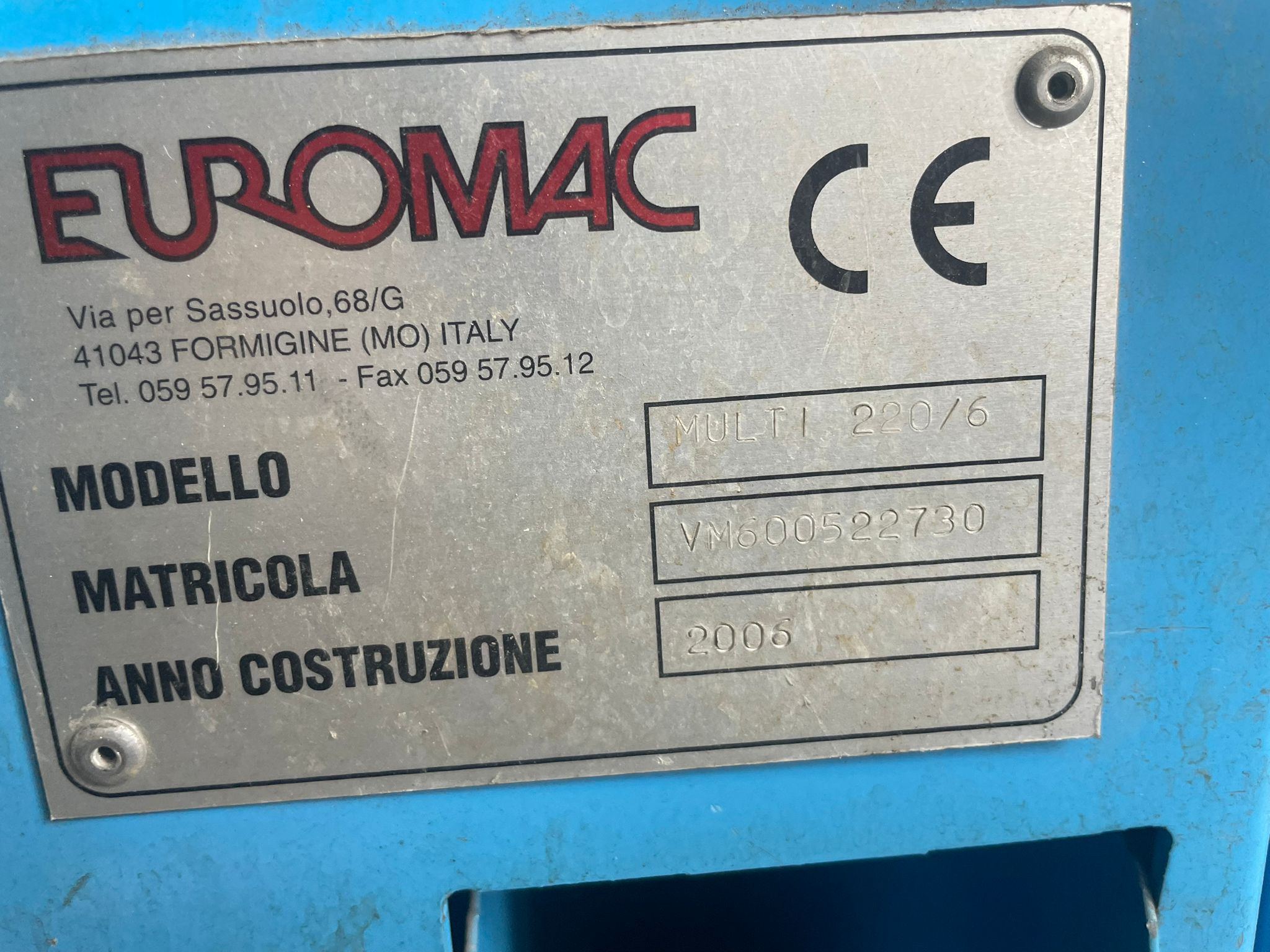

| Manufactured by | Euromac (Italy) |
|---|---|
| Year of manufacture | 2006 |
| Variable cutting angle, degrees | 30° – 140° |
| Blade length, mm | 220 |
| Max. sheet thickness, mm | 6,5 |
| Table size, mm | 950 x 1030 |
| Power required, kW | 4,0 |
| Machine dimensions, mm | 1100 x 950 x 1280 |
| Machine weight, kg | 800 |

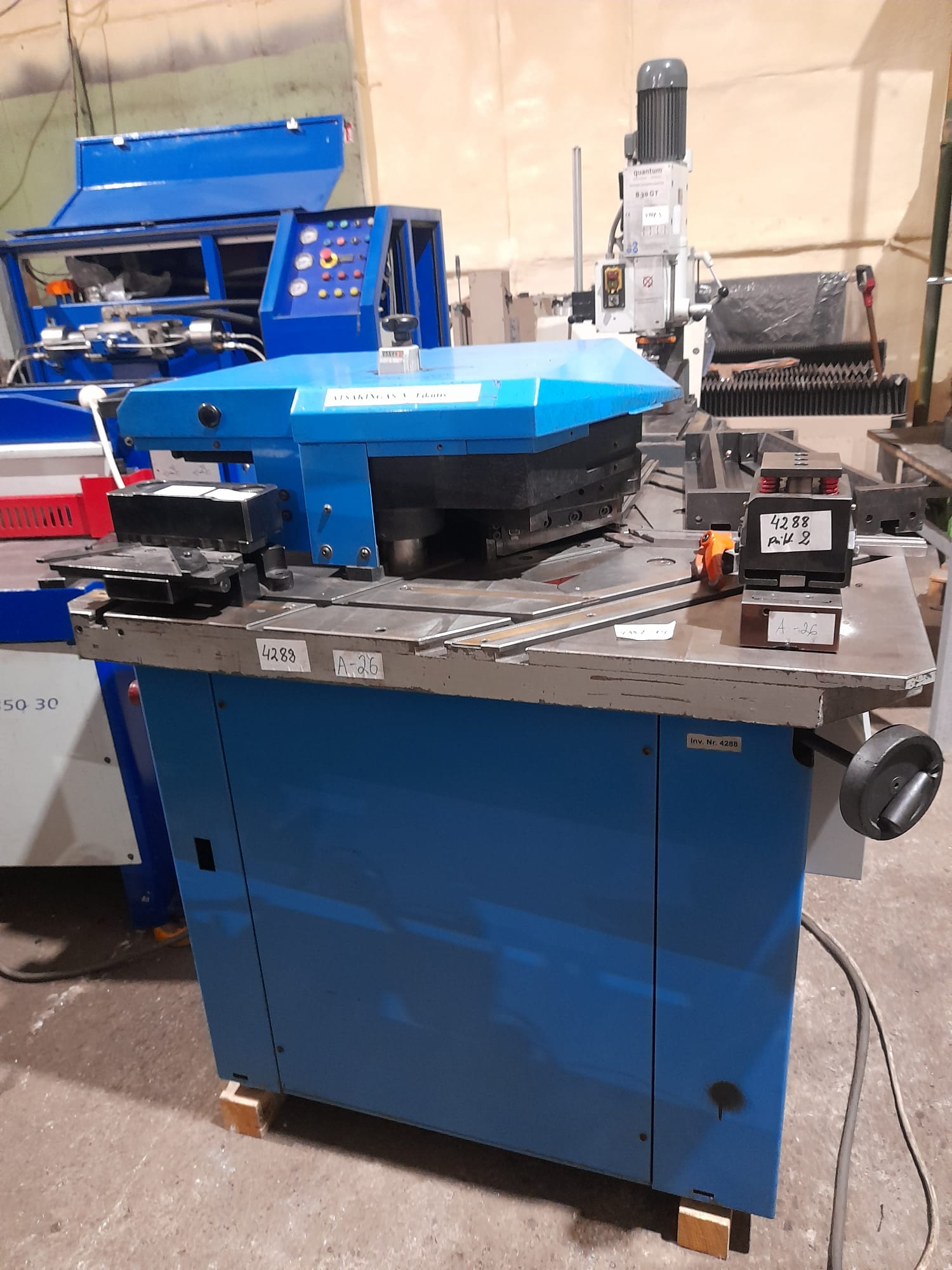

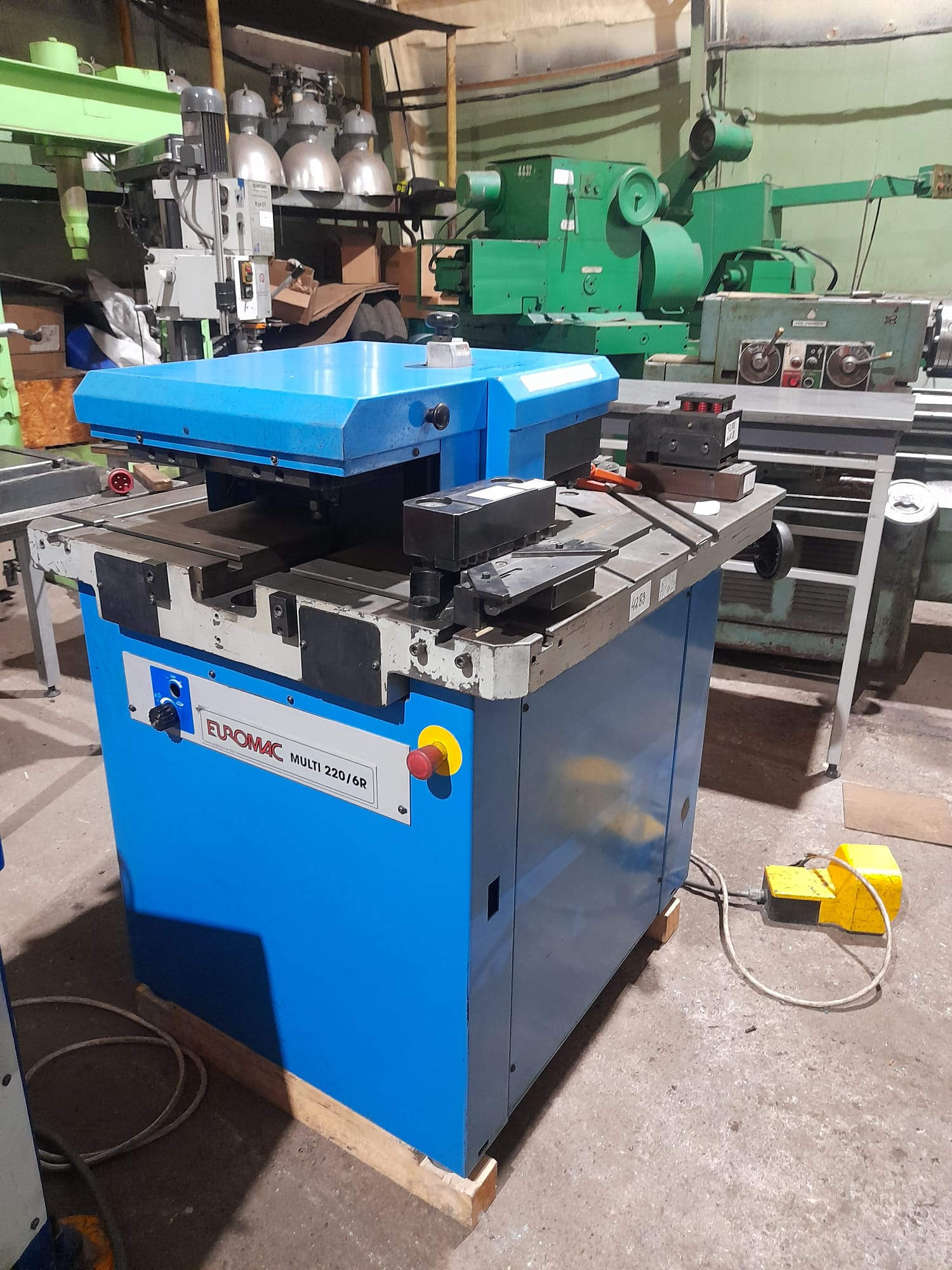

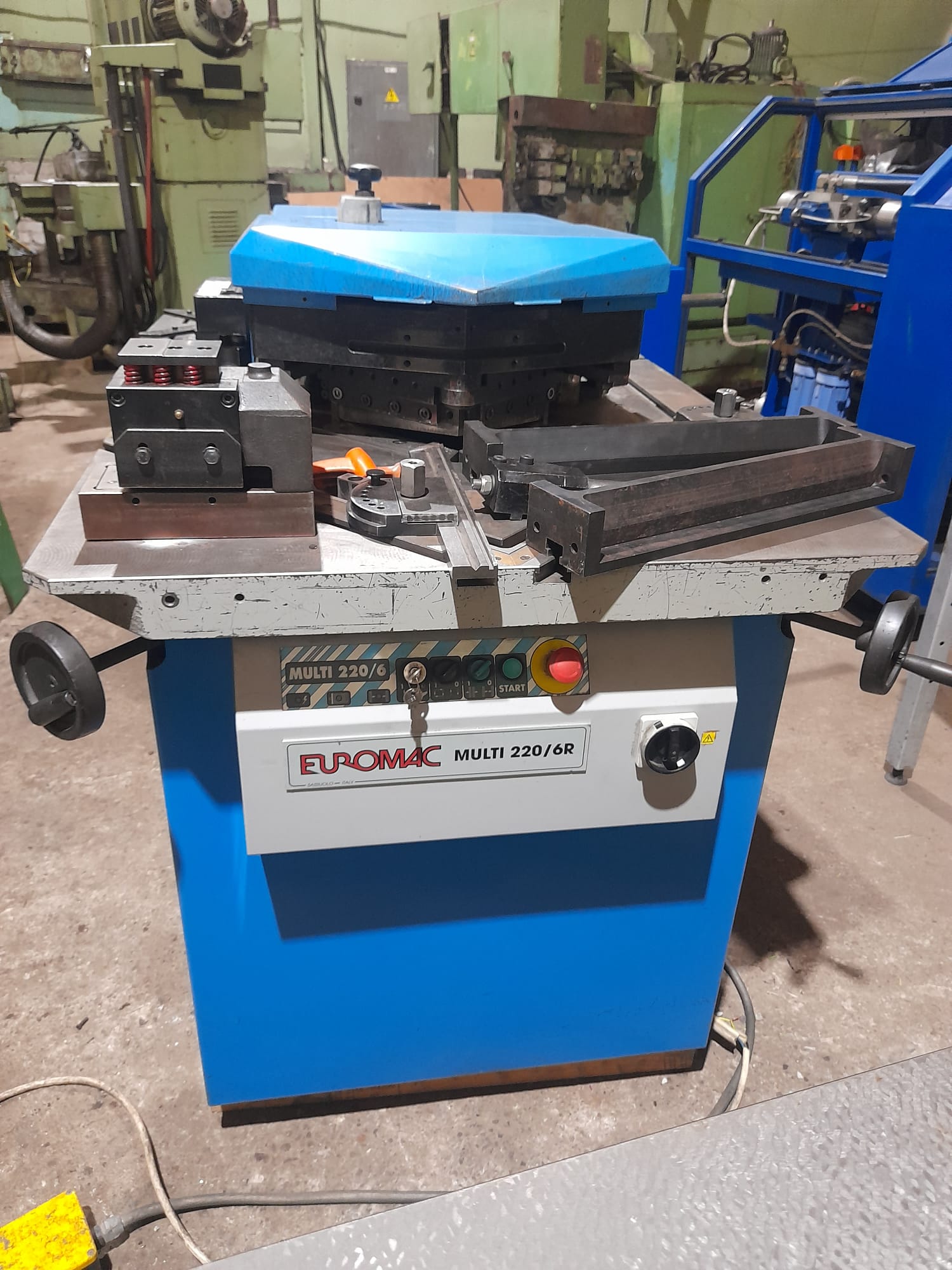

Notching machine EUROMAC MULTI 220/6
The Euromac Multi 220/6 is a robust hydraulic variable-angle notching machine designed for fast and accurate corner cutting in sheet metal. It features a 220 mm blade, adjustable cutting angle from 30° to 140°, automatic blade clearance adjustment, and a heavy-duty worktable for precise positioning. With a cutting capacity of up to 6.5 mm mild steel, it is an ideal solution for fabrication workshops producing cabinets, enclosures, frames, and custom sheet metal components.
