Manufactured by | Stanko (Russia) |
---|---|
Work piece diameter, mm | 400 |
Work piece length, mm | 1400 |
Spindle rotation speed, rpm | 12,5 – 1600 |
Spindle bore diameter, mm | 53 |
Metric threading, mm | 0,5 – 112 |
Inch threading, thread/inch | 56-0,5 |
Module threading, module | 0,5-112 |
Pitch threading, diametral pitch | 56 – 0,5 |
Motor capacity, kW | 7,5 |
Machine weight, kg | 3000 |
Machine dimensions, mm | 2795 x 1240 x 1500 |
Home » Catalog » Lathe machines »

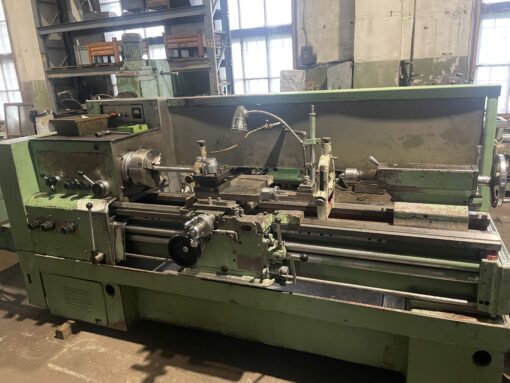

Universal lathe STANKO 16K20
The is in good condition and prepared for work:
- Replacement of spindle bearings.
- Repair of the friction shaft with complete disassembly, replacement of friction discs and bearings with new ones.
- Replacement of the screw and nut on the tailstock.
- Repair of the spindle engagement handle mechanisms.
- Adjustment of the headstock.
- After a test turning of a 250 mm long rod, the deviation is 0.02 mm.
