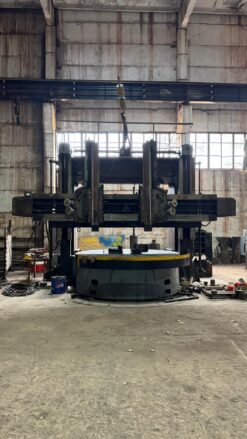

Vertical turning lathe KOLOMNA KU 518

It is analogue of the VTL 1532T. Heavy duty vertical lathe is in a very nice and accurate condition. Machine-tool is fully complete and under power. Slides are clean, there are no cracks on the frame.

Manufactured by

Kolomna

Year of manufacture

1991

Work piece diameter, mm

3200

Max work piece height, mm

2000

Max work piece weight, kg

50000

Table speed, rpm

0,66…62,1

Movement of vertical support, mm:

– Horizontal 1720, – Vertical 1250;

Feed speed, mm/min

0,059…470

Max swivel angle of support, degrees

45

Motor capacity, kW

70

Machine dimensions, mm

5100 x 9300 x 7200

Machine weight, kg

95400
