| Year of manufacture | 1980 |
|---|---|
| Manufactured by | Saratov (Russia) |
| Module, mm | 8 |
| Tool rotation speed range, rot/min | 26…210 |
| Min. angle of dividing cone (pitch), degrees | 5 |
| Nominal diameter of gear - cutting heads, mm | 100, 125, 160, 200, 250, 320, 400 |
| Inclination angle of tooth: | any |
| Max. gear wheel tooth depth, mm | 22 |
| Max. gear ring width, mm | 80 |
| Max. hypoid movement, mm: | – Upwards 80; – Downwards 80 |
| Max. gear wheel diameter, mm | 500 |
| Number of wheel teeth: | 5…150 |
| Motor capacity, kW | 4 |
| Machine dimensions, mm | 2885 x 2570 x 1995 |
| Machine weight, kg | 8750 |

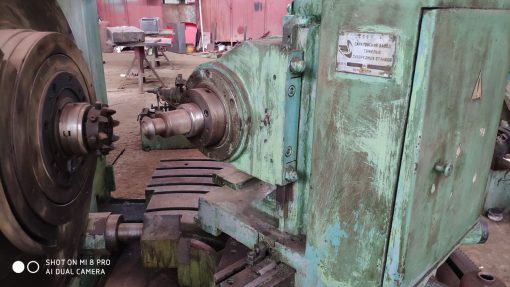

Bevel gear generator SARATOV 5C270P
Semi – automatic gear cutting machine 5C270P is designed for finishing bevel and hypoid gears with circular teeth. Machine-tool is in good condition.
