| Manufactured by | Guifil (Portugal) |
|---|---|
| Year of manufacture | 2003 |
| Bending capacity, ton | 50 |
| Max plate length, mm | 2050 |
| Max. stroke, mm | 200 |
| Throat depth, mm | 350 |
| Distance between housing, mm | 1600 |
| Rapid approach, mm/s | 200 |
| Working speed, mm/s | 10 |
| Return speed, mm/s | 145 |
| Control: | Delem |
| Power required, kW | 5,5 |
| Machine weight, kg | 3500 |

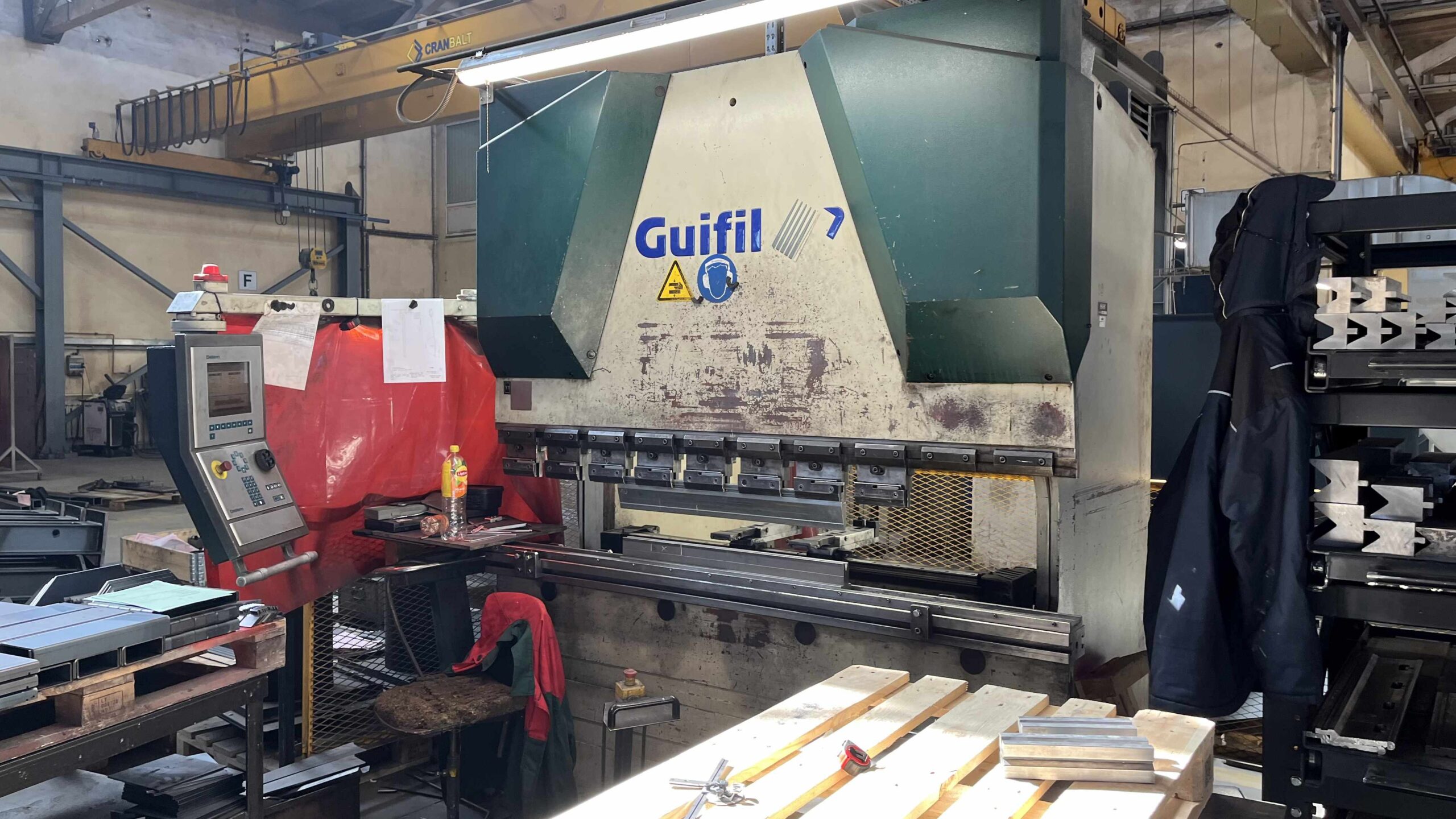

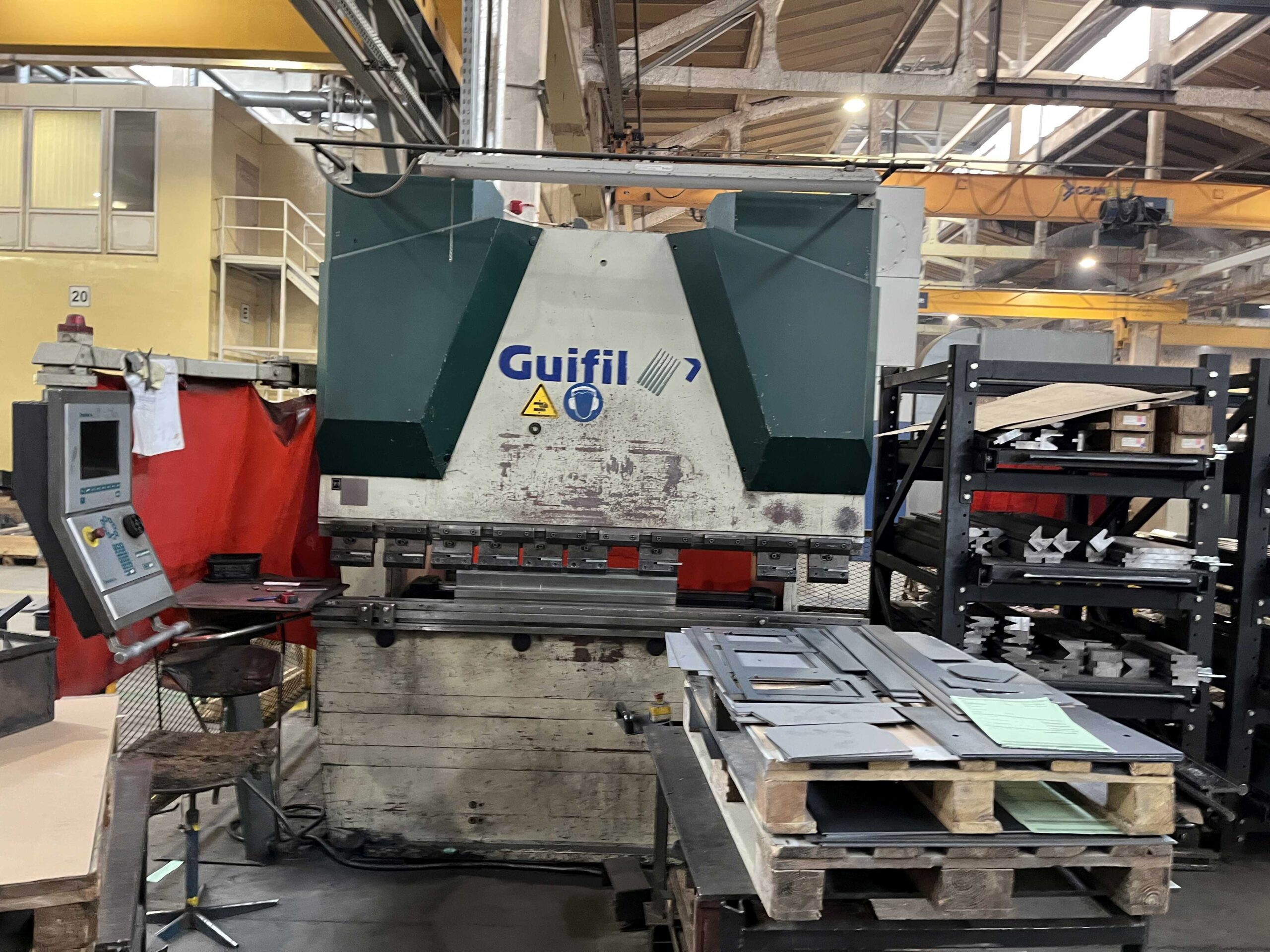

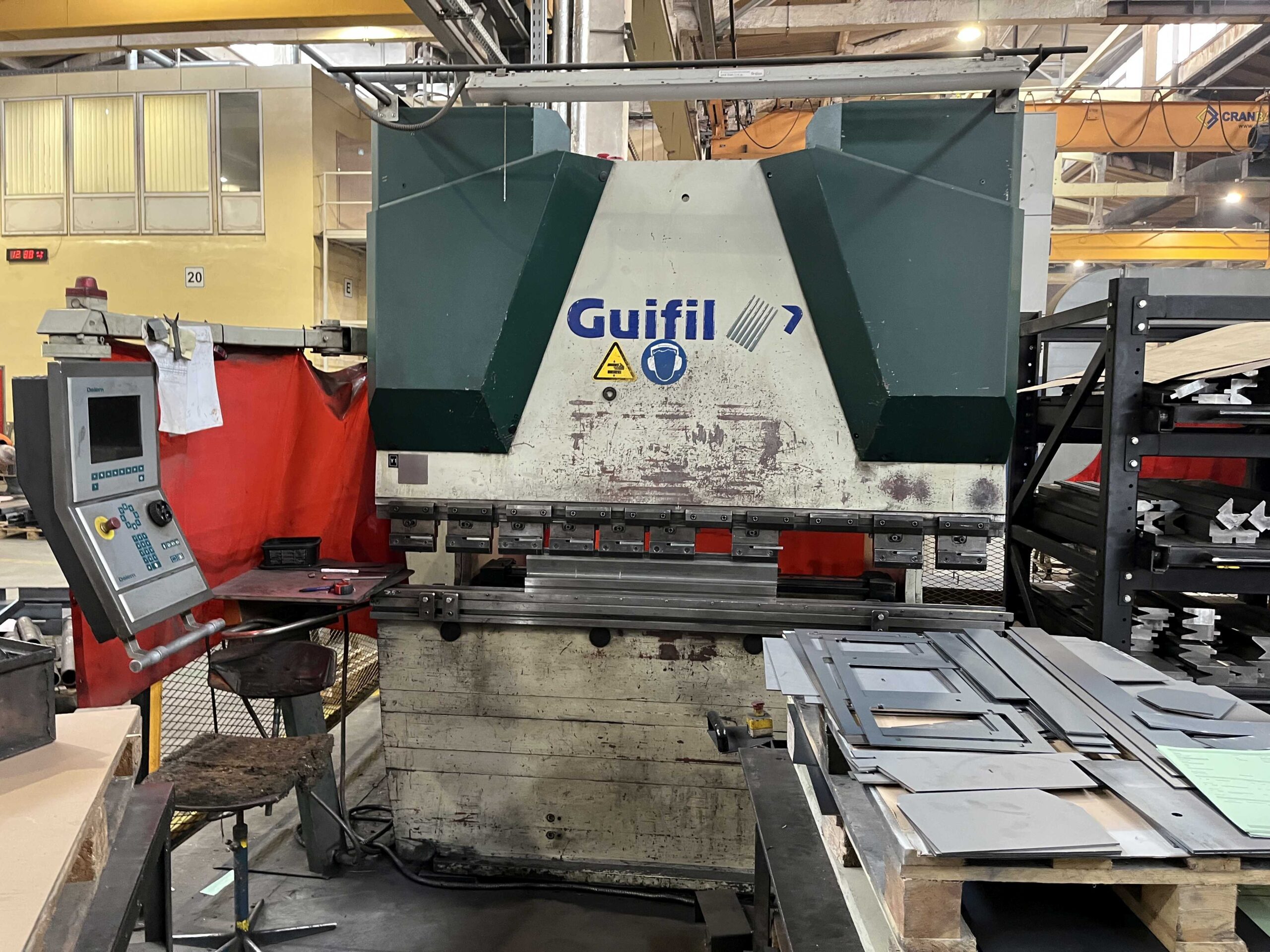

CNC press brake GUIFIL FCS-20/50
Hydraulic press brake Guifil FCS 20/50 is a compact and reliable bending solution designed for precision sheet metal work. Manufactured in Portugal by Guimadira Máquinas e Ferramentas, this model is well suited for small to medium-sized workshops requiring accuracy and efficiency.
With a bending force of 50 tons (500 kN) and a working length of 22050 mm, the machine is ideal for processing thinner materials and smaller components. Its rigid frame construction ensures stable operation, while the hydraulic system provides smooth and consistent bending performance.

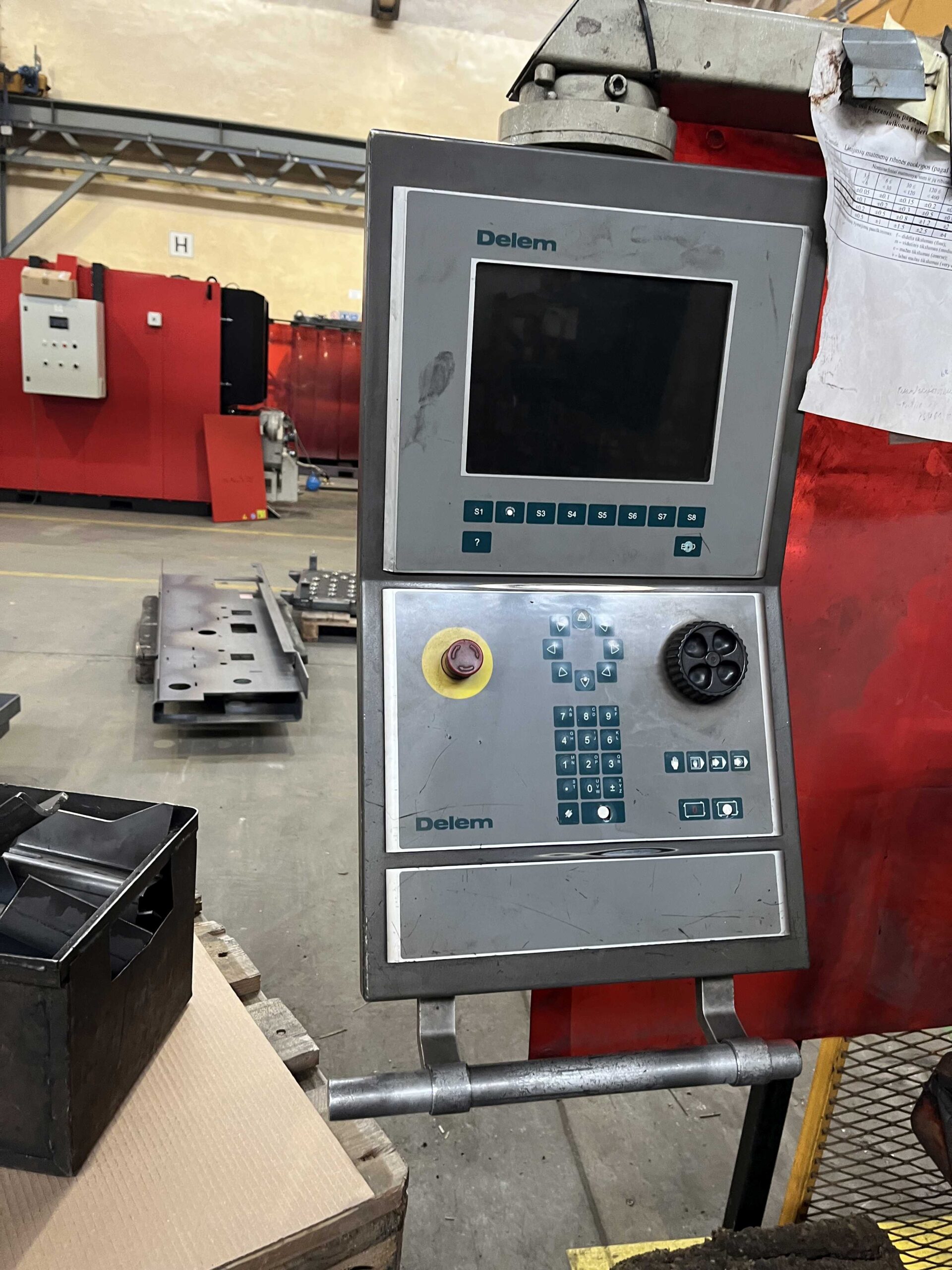

The press brake is equipped with a DELEM control system, allowing straightforward operation and repeatable results. The back gauge system supports accurate positioning and improves productivity in daily use.
This model is a practical and cost-effective choice for companies looking for a dependable entry-level press brake.

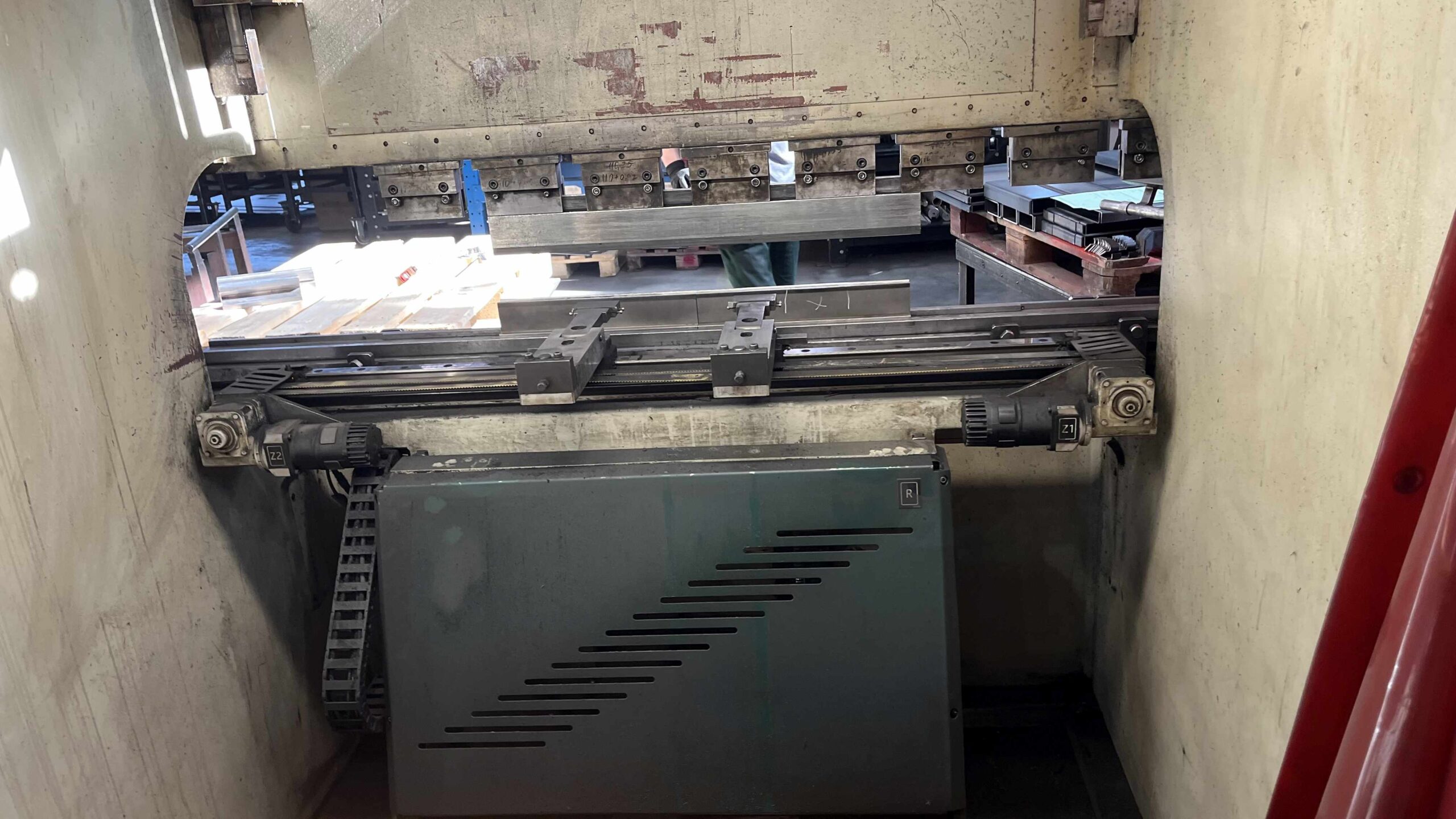

The press brake is equipped with punches and dies. It has backgauge X1-X2-R-Z1-Z2.
