| Manufactured by | Guifil (Portugal) |
|---|---|
| Year of manufacture | 2005 |
| Bending capacity, ton | 225 |
| Max plate length, mm | 4000 |
| Max. stroke, mm | 300 |
| Throat depth, mm | 500 |
| Distance between housing, mm | 3700 |
| Rapid approach, mm/s | 200 |
| Working speed, mm/s | 10 |
| Return speed, mm/s | 130 |
| Control: | Delem DA-66W |
| Power required, kW | 22 |
| Machine weight, kg | 20500 |

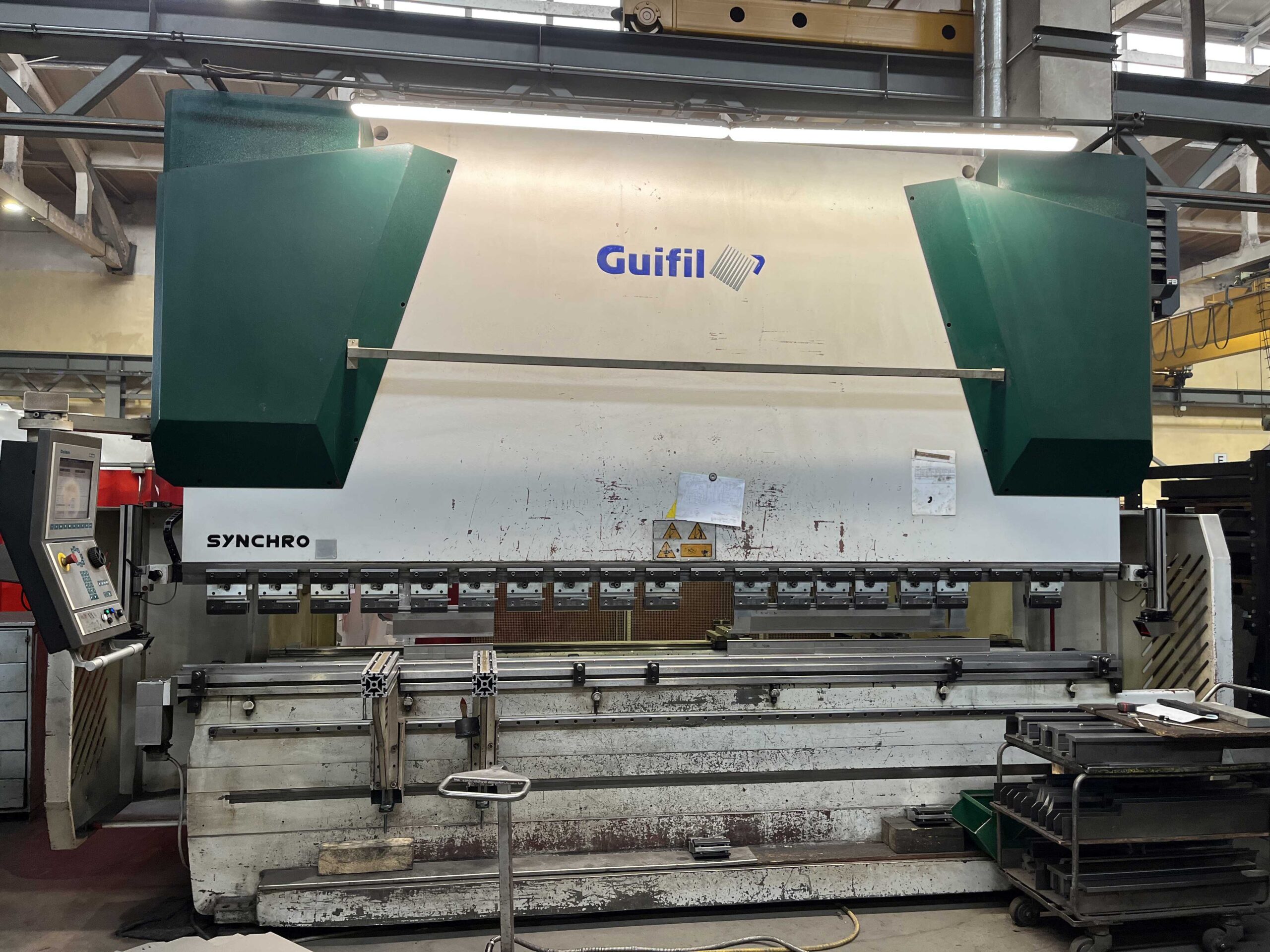

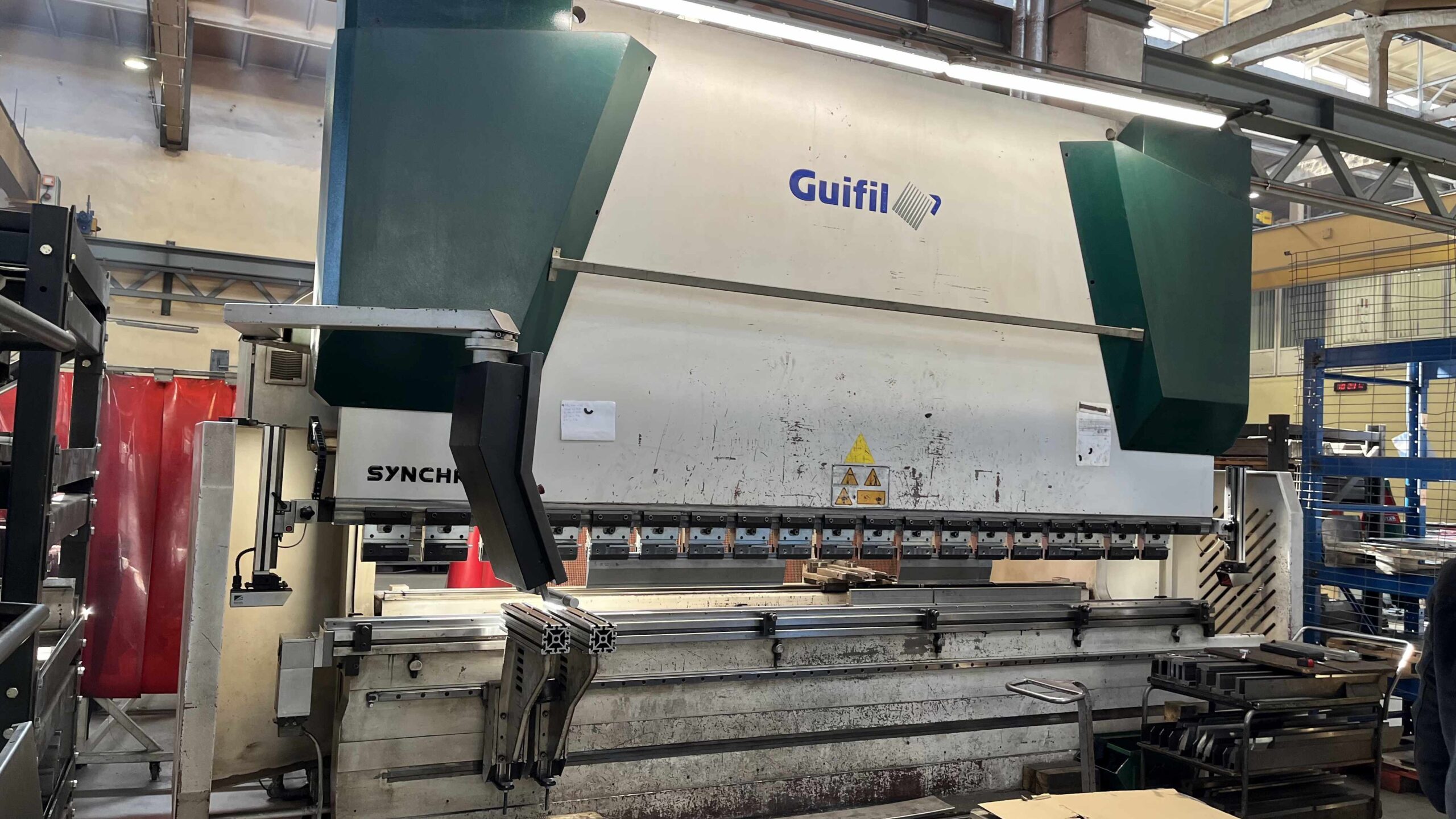

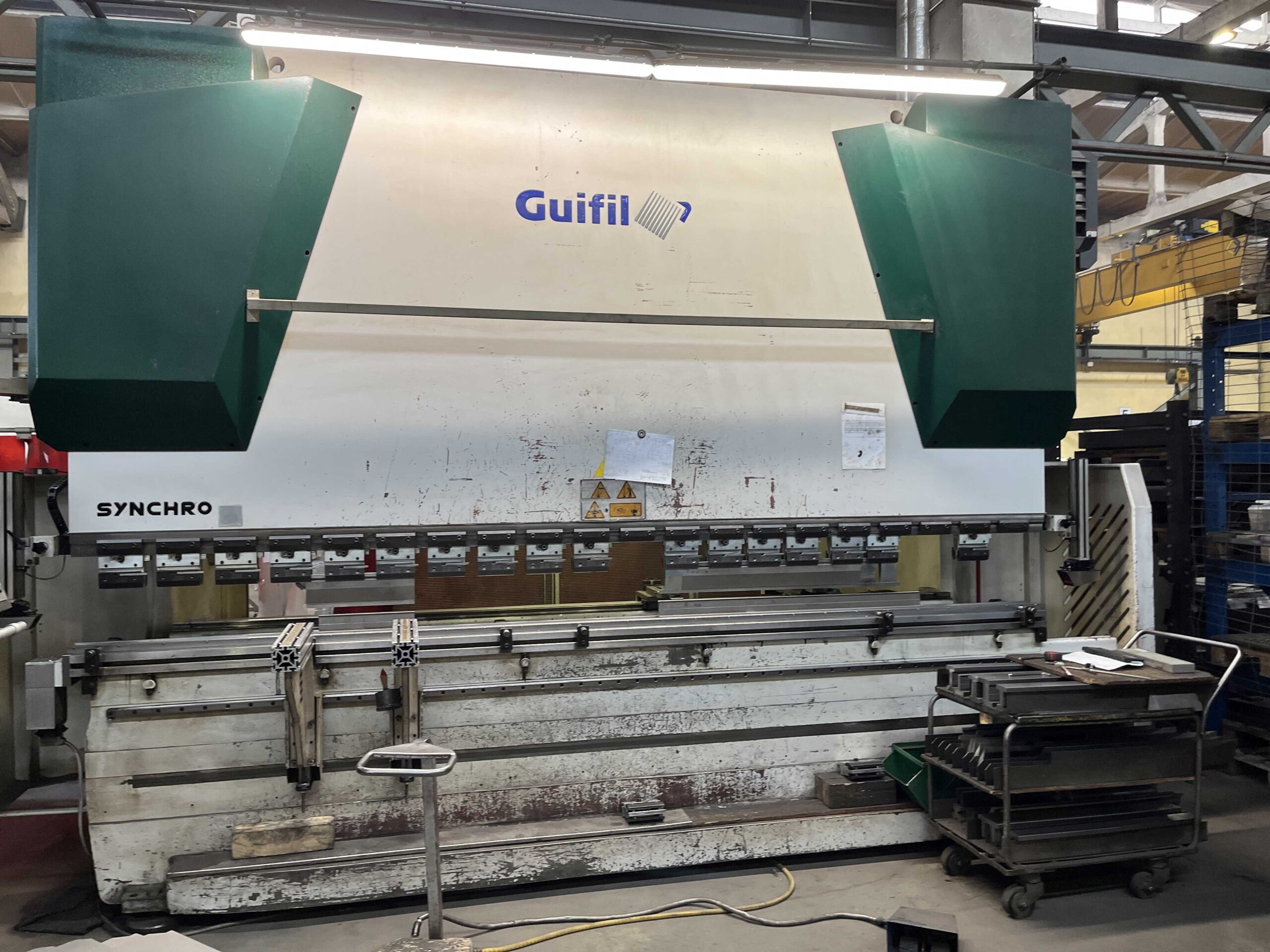

CNC press brake GUIFIL FCS-40225 PLS
Hydraulic press brake Guifil FCS-40225 PLS, manufactured in Portugal, is a heavy-duty machine designed for high-capacity sheet metal bending. With a bending force of 225 tons and a working length of 4000 mm, this model is well suited for processing large and thick materials in industrial environments.
The machine features a robust frame construction ensuring high rigidity and stability during operation, even under maximum load. The hydraulic system provides smooth and consistent performance, making it reliable for both single-piece and serial production.

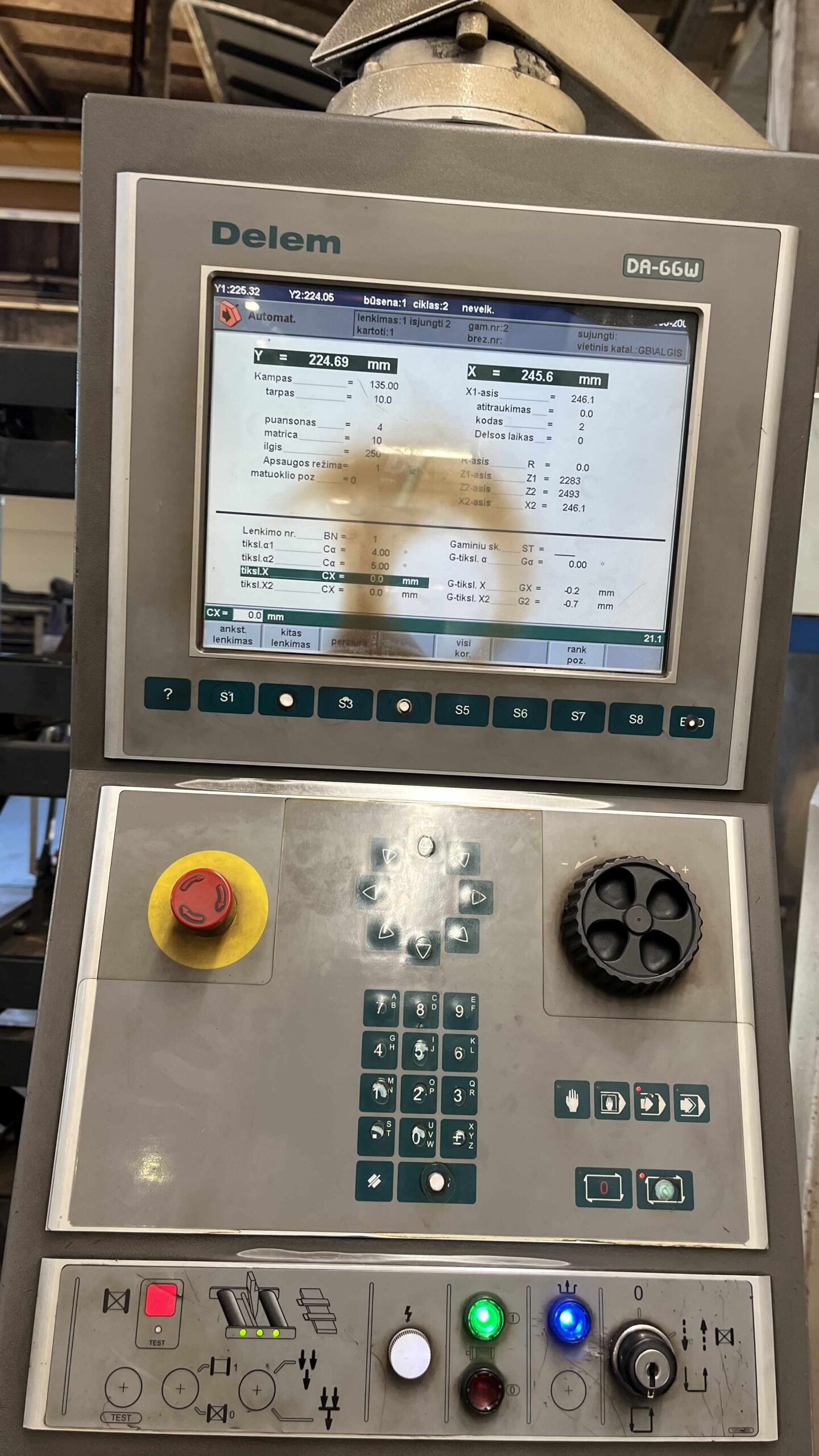

Equipped with a Delem CNC control, the press brake allows precise programming of bending sequences and ensures repeatable accuracy. The back gauge system (X and R axes) supports efficient positioning and reduces setup time, increasing overall productivity.
This machine is a strong choice for companies requiring long-bed, high-tonnage bending capacity at a competitive investment level.

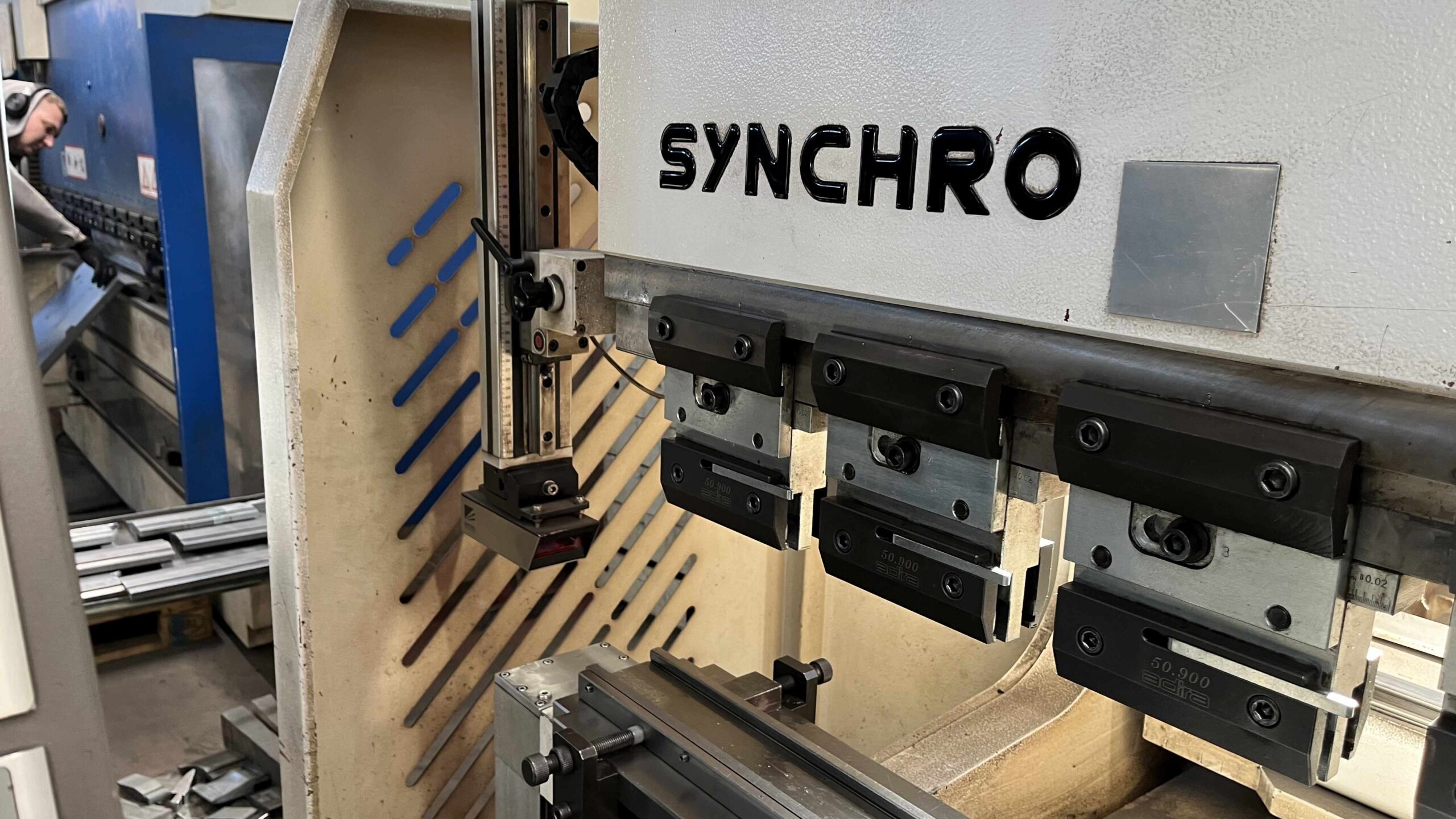

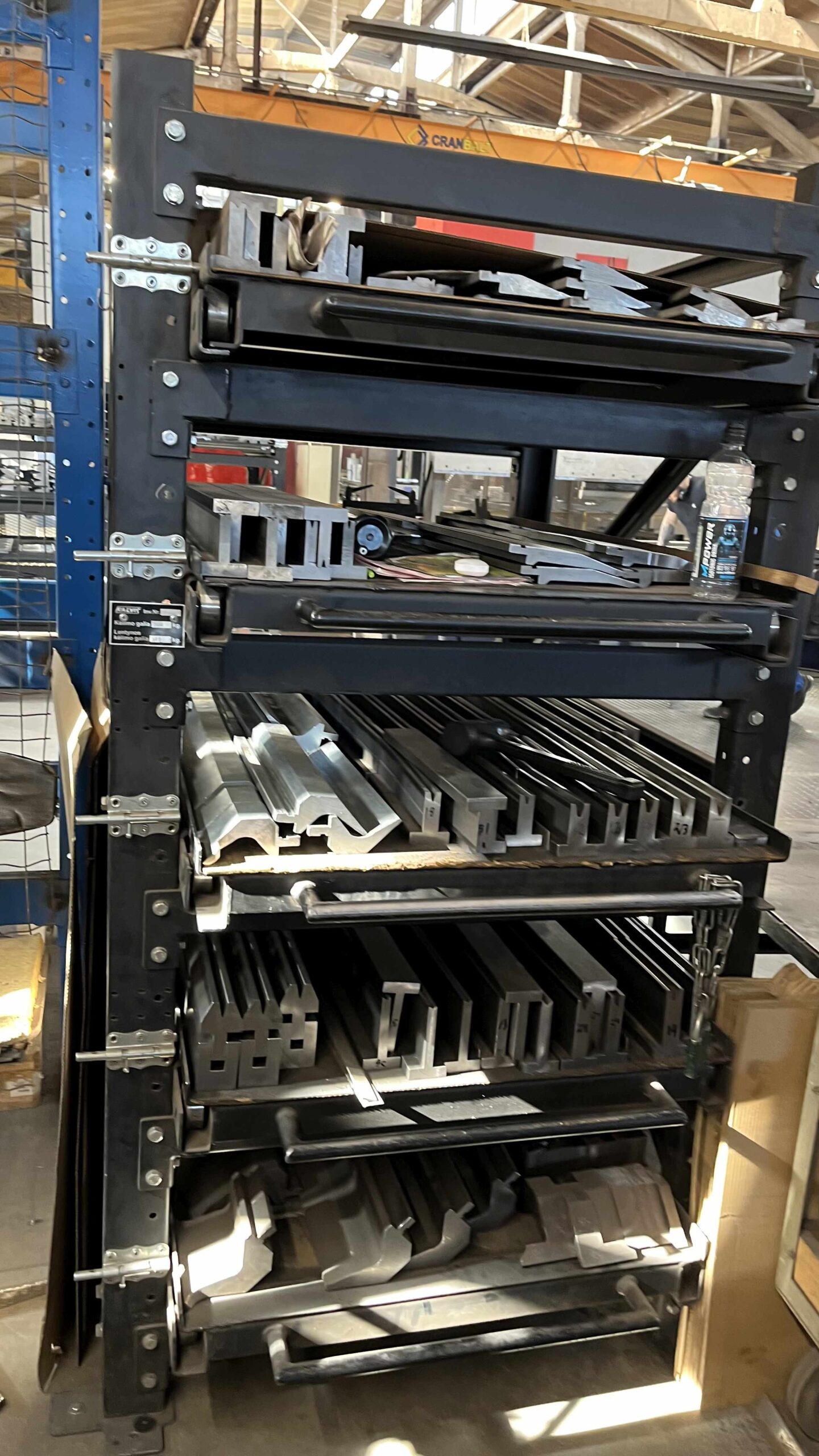

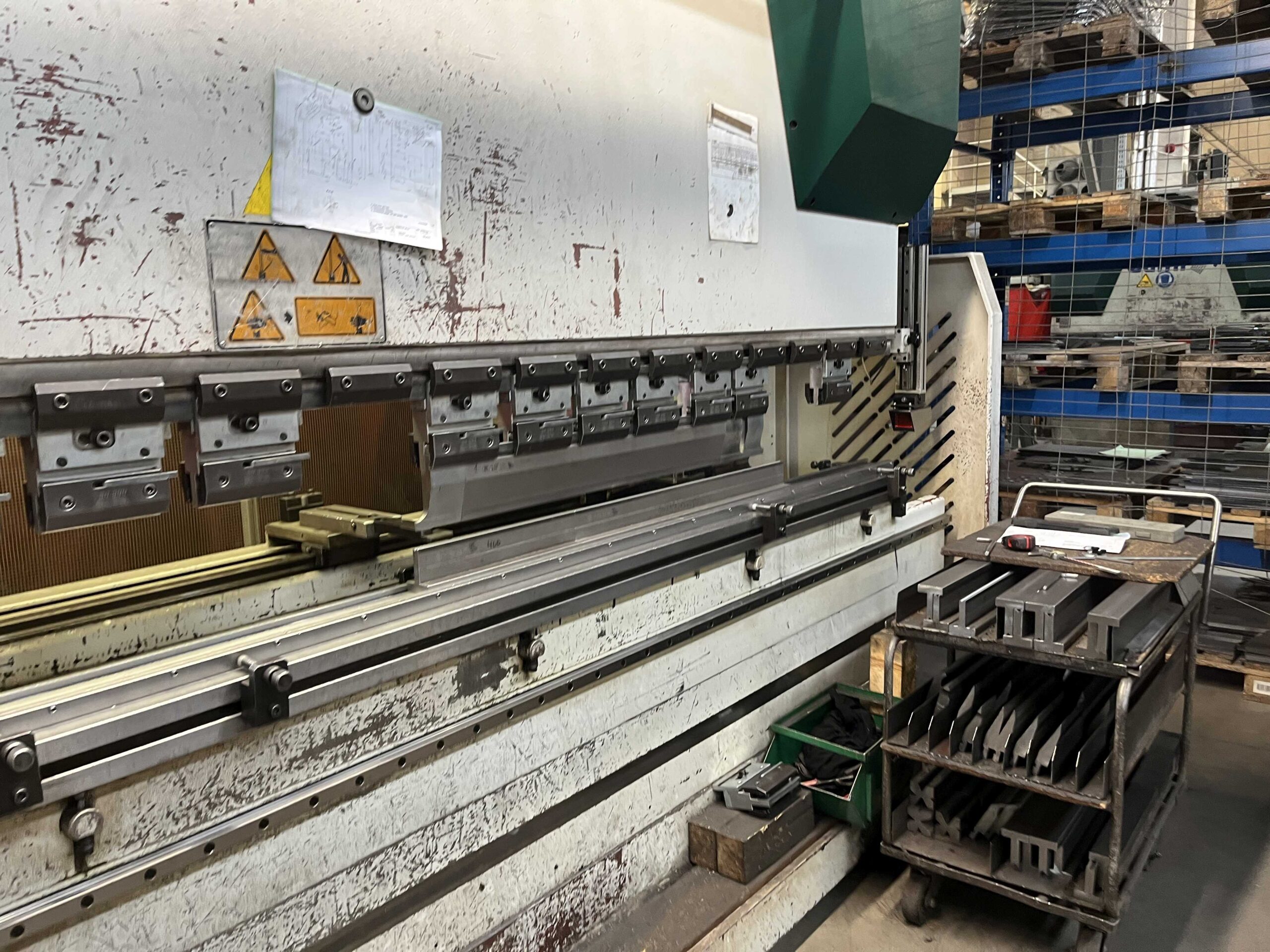

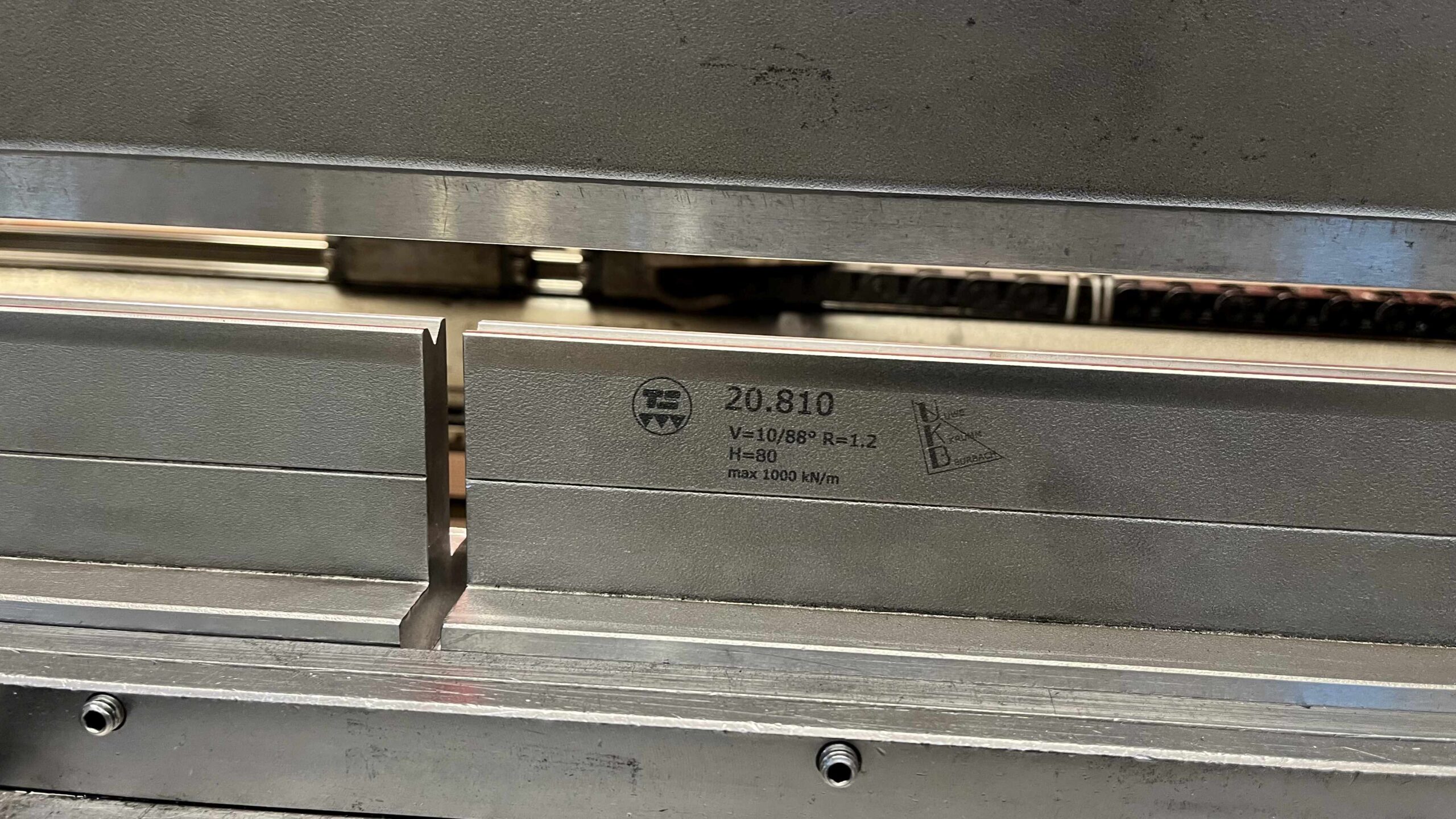

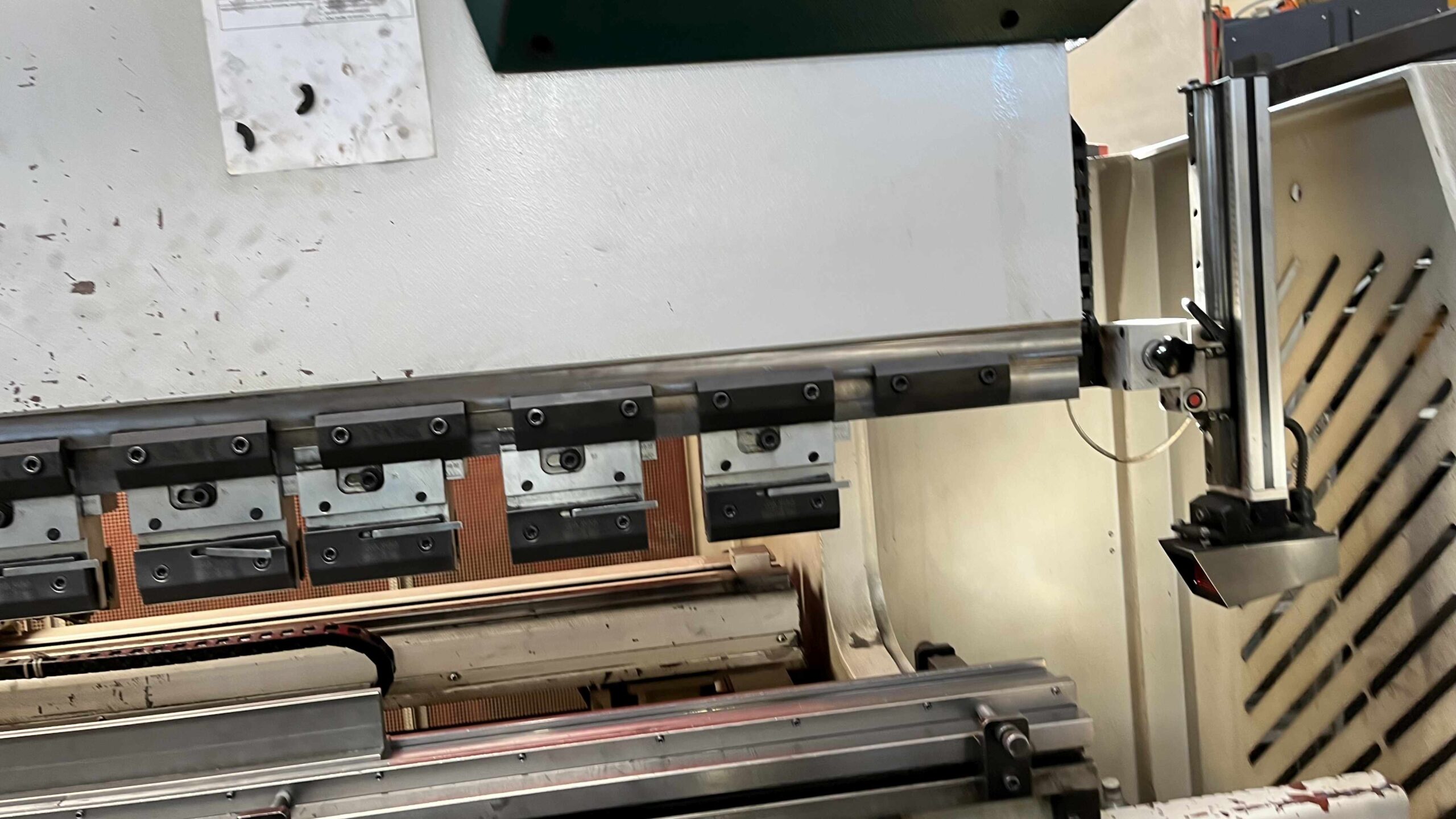

The press brake is equipped with punches and dies. It has backgauge X1-X2-R-Z1-Z2.
